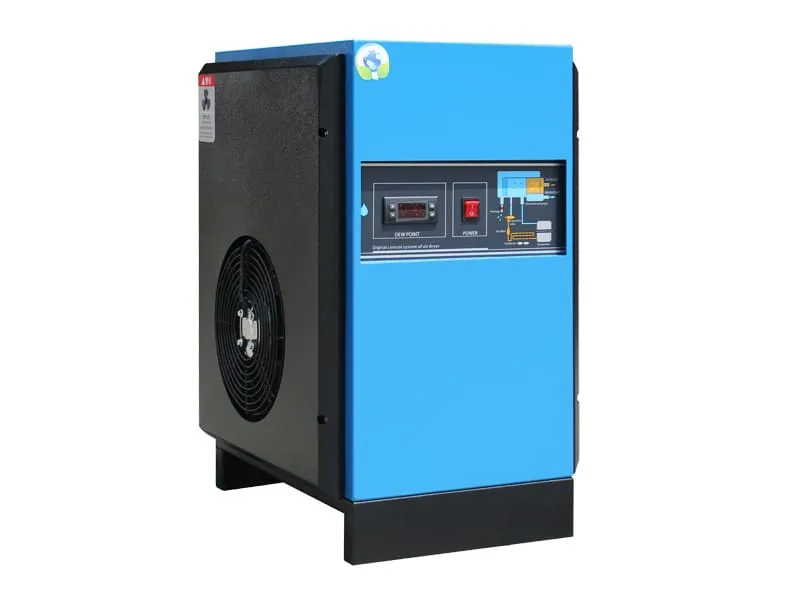

These medium-pressure refrigerated dryers integrate high-efficiency heat exchange with advanced control features, providing reliable moisture removal, energy efficiency, and stable performance in medium-pressure applications across various industries. It delivers consistent cooling performance across varying inlet air conditions and ambient temperatures, while maintaining exceptionally low airflow resistance to minimize pressure drop throughout the system.
The air-cooled refrigerated air dryers can be optionally equipped with IoT components, enabling remote monitoring of the dryer via smartphones or other connected display terminals. This allows users to access real-time performance data and manage operations efficiently and conveniently.
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) | Air pipe connection | Evaporator type | Cooling method | Refrigerant | Total weight (kg) | Dimensions (L×W×H) |
| 1.2 | 220V/50Hz | 0.35 | RC3/4" | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 30 | 480×380×665 | |
| 2.4 | 220V/50Hz | 0.53 | RC3/4" | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 39 | 520×410×725 | |
| 3.6 | 220V/50Hz | 0.765 | RC1" | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 55 | 640×520×850 | |
| 6.5 | 220V/50Hz | 1.279 | RC1-1/2" | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 72 | 700×540×950 | |
| 8.5 | 220V/50Hz | 1.619 | RC2" | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 88 | 770×590×990 | |
| 10.5 | 220V/50Hz | 1.969 | RC2" | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 100 | 770×590×990 | |
| 13 | 220V/50Hz | 2.5 | RC2" | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 104 | 800×610×1030 | |
| 17 | 380V/50Hz | 4.25 | RC2" | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 180 | 1000×850×1100 | |
| 23 | 380V/50Hz | 5.55 | RC2-1/2" | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 236 | 1100×900×1160 | |
| 27 | 380V/50Hz | 6.58 | DN80 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 270 | 1215×950×1230 | |
| 33 | 380V/50Hz | 7.2 | DN80 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 335 | 1425×1000×1480 | |
| 42 | 380V/50Hz | 10.55 | DN100 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 439 | 1575×1100×1640 |

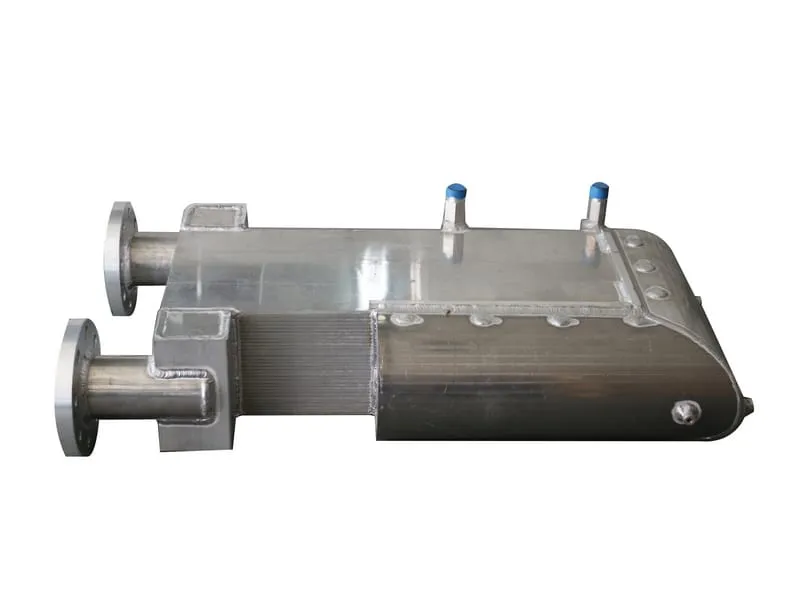

Equipped with an aluminum alloy three-in-one plate heat exchanger and an enlarged precooler, minimizing refrigeration energy losses and maximizing thermal recovery.
Enhances compressed air discharge temperature, effectively reducing residual moisture for improved air quality.
Integrated heat exchanger features flow guide fins for uniform heat transfer.
Includes a built-in air-water separator with a stainless steel mesh filter to ensure thorough and reliable moisture separation.

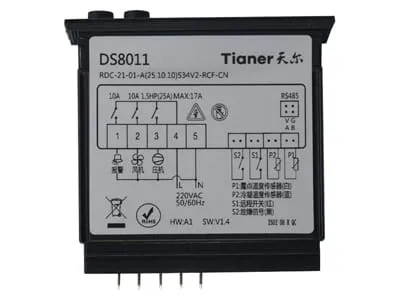

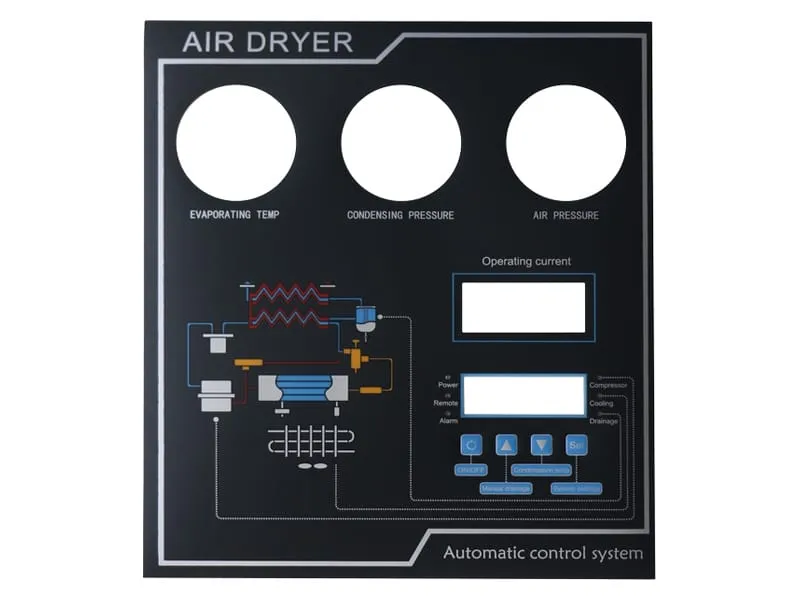

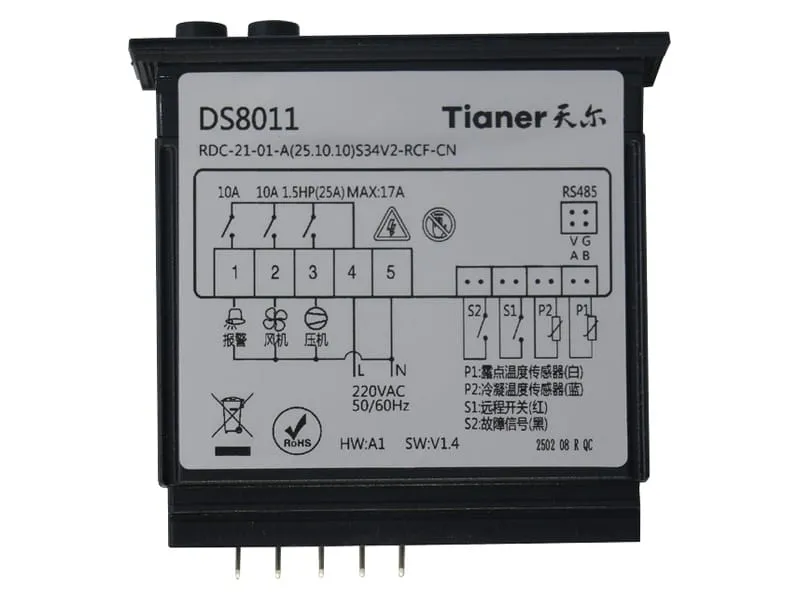

Features multi-point temperature and pressure monitoring with real-time dew point display.
Automatically records cumulative operating hours and includes self-diagnostic functionality with alarm codes and automatic protection measures for safe and reliable operation.
Utilizes R134a and R410A refrigerants in compliance with the Montreal Protocol, ensuring zero ozone depletion potential and adherence to international environmental standards.
Standardized with a constant-pressure expansion valve for automatic refrigerant adjustment across varied operating conditions.
Features dual anti-freeze protection (temperature and pressure), enabling energy-efficient operation and extending equipment lifespan.
Whether you need local assistance or international coordination, our team is ready to help. We’ll connect you with a trusted Tianer partner to support your compressed air treatment system needs- quickly, reliably, and personally.
