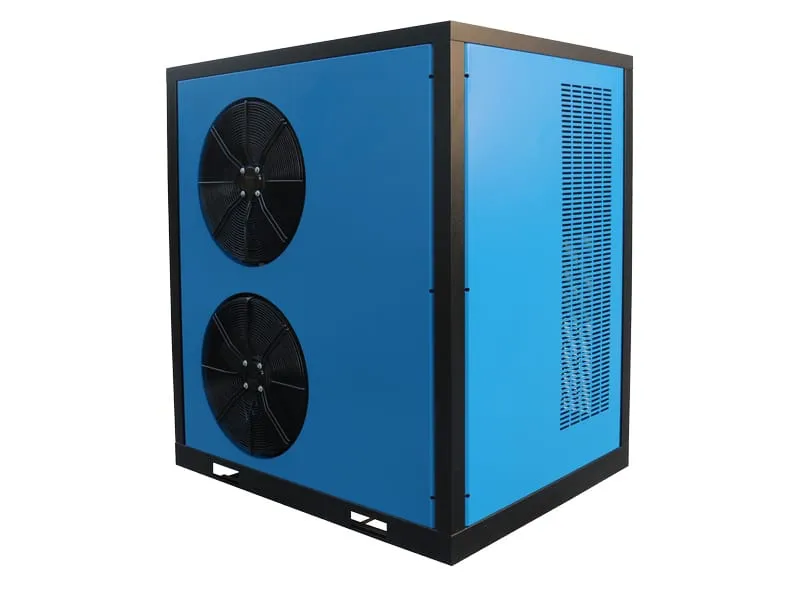

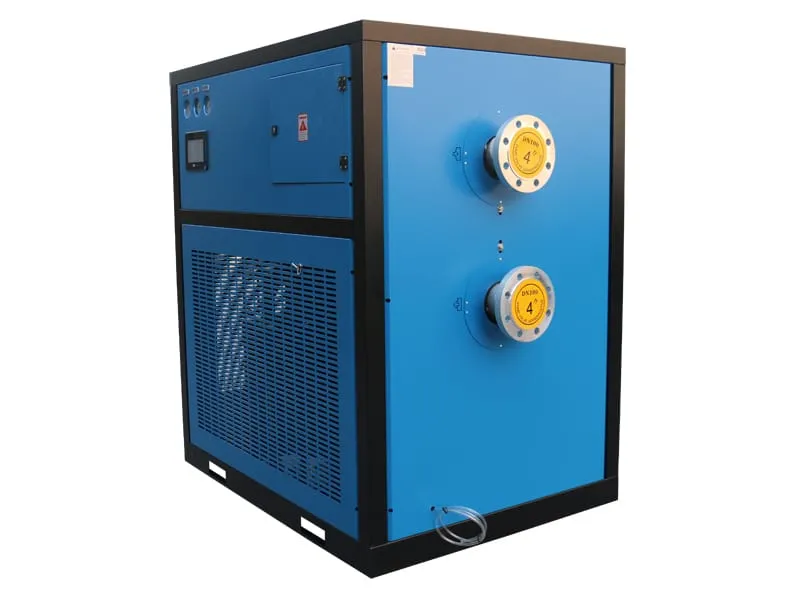

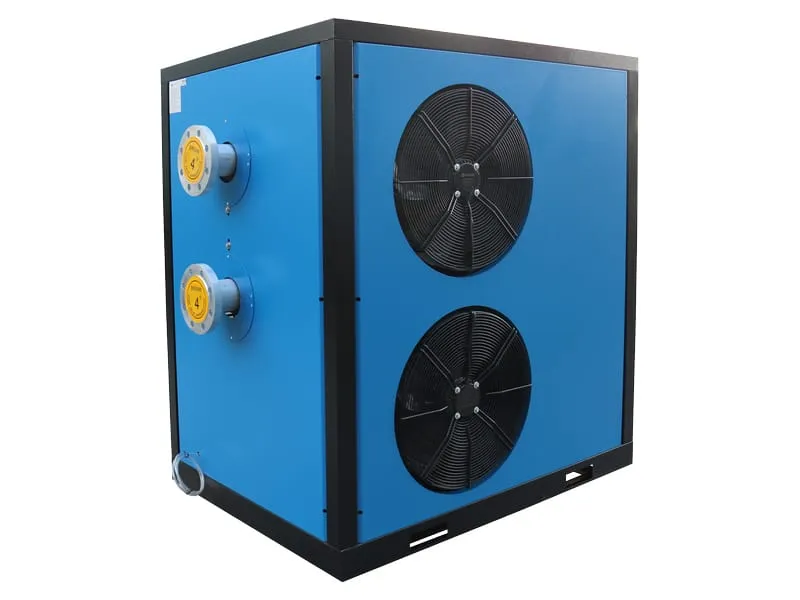

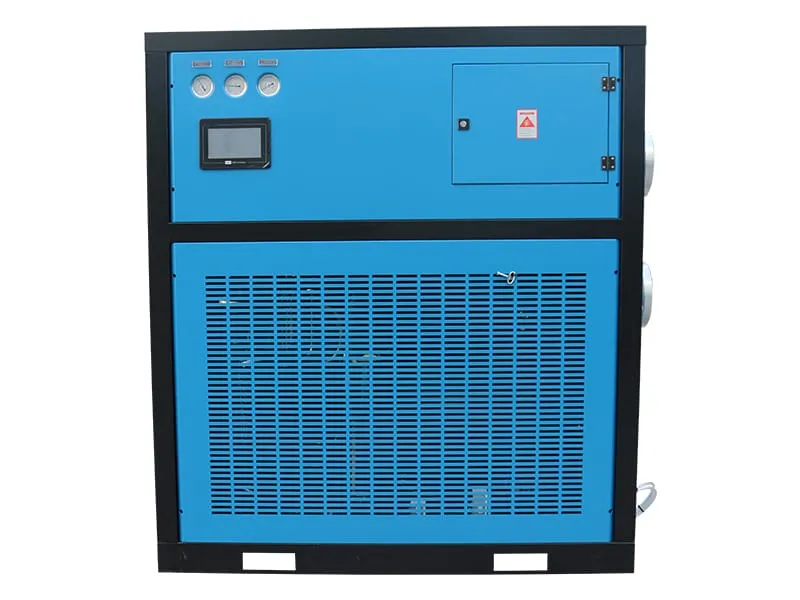

Engineered for large-scale industrial applications, the water-cooled refrigeration dryers utilizes water cooling for optimal thermal management and consistent moisture removal from compressed air systems. This energy-saving dryer delivers high efficiency, environmental compliance, and stable long-term performance even under demanding operational conditions.
The air-cooled refrigerated air dryers can be optionally equipped with IoT components, enabling remote monitoring of the dryer via smartphones or other connected display terminals. This allows users to access real-time performance data and manage operations efficiently and conveniently.
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) | Air pipe connection | Cooling water connection | Evaporator type | Cooling method | Refrigerant | Total weight (kg) | Dimensions (L×W×H) |
| 17 | 380V/50Hz | 3.8 | RC2' | RC1' | Aluminum plate heat exchanger | Water condenser | R407C | 180 | 1000×850×1100 | |
| 23 | 380V/50Hz | 4.95 | RC2-1/2' | RC1' | Aluminum plate heat exchanger | Water condenser | R407C | 210 | 1100×900×1160 | |
| 27 | 380V/50Hz | 5.8 | DN80 | RC1' | Aluminum plate heat exchanger | Water condenser | R407C | 350 | 1215×950×1230 | |
| 33 | 380V/50Hz | 6.3 | DN80 | RC1-1/2' | Aluminum plate heat exchanger | Water condenser | R407C | 420 | 1425×1000×1480 | |
| 42 | 380V/50Hz | 9.35 | DN100 | RC1-1/2' | Aluminum plate heat exchanger | Water condenser | R407C | 550 | 1575×1100×1640 | |
| 55 | 380V/50Hz | 11.3 | DN100 | RC1-1/2' | Aluminum plate heat exchanger | Water condenser | R407C | 680 | 1750×1200×1743 | |
| 65 | 380V/50Hz | 11.3 | DN125 | RC2' | Aluminum plate heat exchanger | Water condenser | R407C | 780 | 2000×1350×1520 | |
| 85 | 380V/50Hz | 13.62 | DN125 | RC2' | Aluminum plate heat exchanger | Water condenser | R407C | 920 | 2155×1400×1743 | |
| 110 | 380V/50Hz | 18.6 | DN150 | RC2' | Aluminum plate heat exchanger | Water condenser | R407C | 1150 | 2455×1520×1960 | |
| 130 | 380V/50Hz | 22.7 | DN150 | RC2.5' | Aluminum plate heat exchanger | Water condenser | R407C | 1380 | 2100×2120×2010 | |
| 160 | 380V/50Hz | 27.6 | DN200 | RC2.5' | Aluminum plate heat exchanger | Water condenser | R407C | 1725 | 2800×2120×2010 | |
| 220 | 380V/50Hz | 37.2 | DN200 | RC2'*2 | Aluminum plate heat exchanger | Water condenser | R407C | 2200 | 3000×2200×2010 | |
| 275 | 380V/50Hz | 45.4 | DN250 | RC2.5'*2 | Aluminum plate heat exchanger | Water condenser | R407C | 2600 | 3070×1500×2395 | |
| 330 | 380V/50Hz | 55.2 | DN300 | RC2.5'*2 | Aluminum plate heat exchanger | Water condenser | R407C | 3000 | 3130×2340×2080 | |
| Technical data available on request | ||||||||||

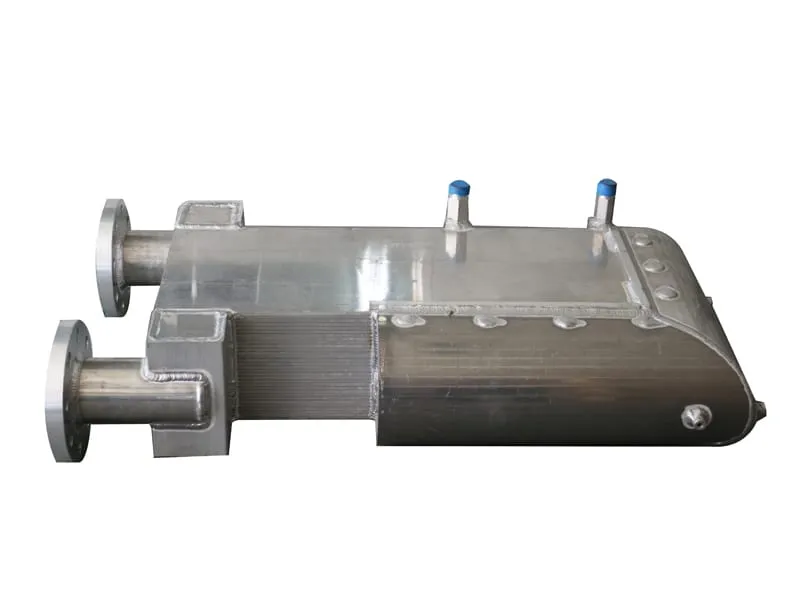

Equipped with an aluminum alloy three-in-one heat exchanger and an enlarged precooler, minimizing process refrigeration losses and maximizing thermal energy recovery.
Enhances compressed air discharge temperature, effectively reducing residual moisture.
Integrated heat exchanger with flow guide fins ensures uniform heat transfer.
Built-in air-water separator with stainless steel mesh filter ensures efficient and reliable moisture separation.

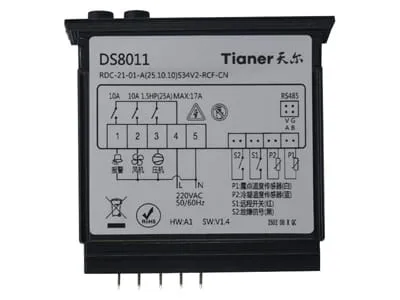

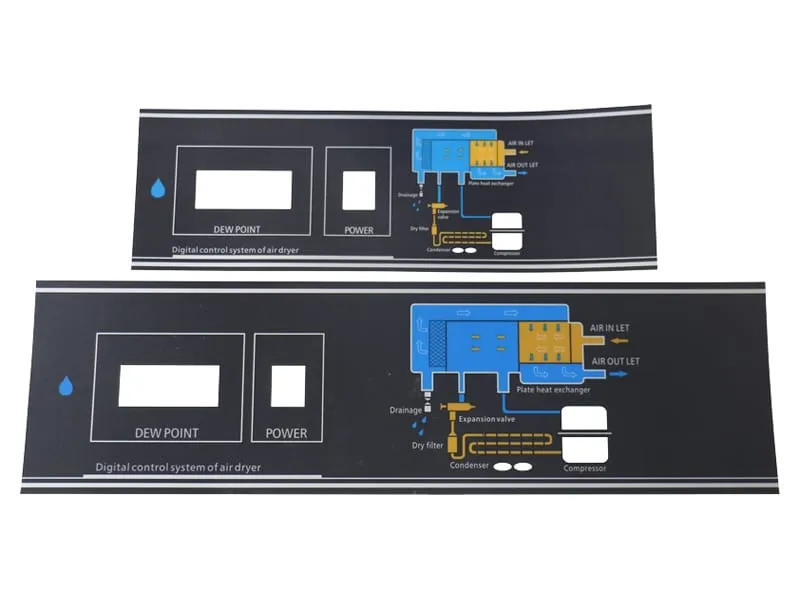

Features multi-point temperature and pressure monitoring with real-time dew point display.

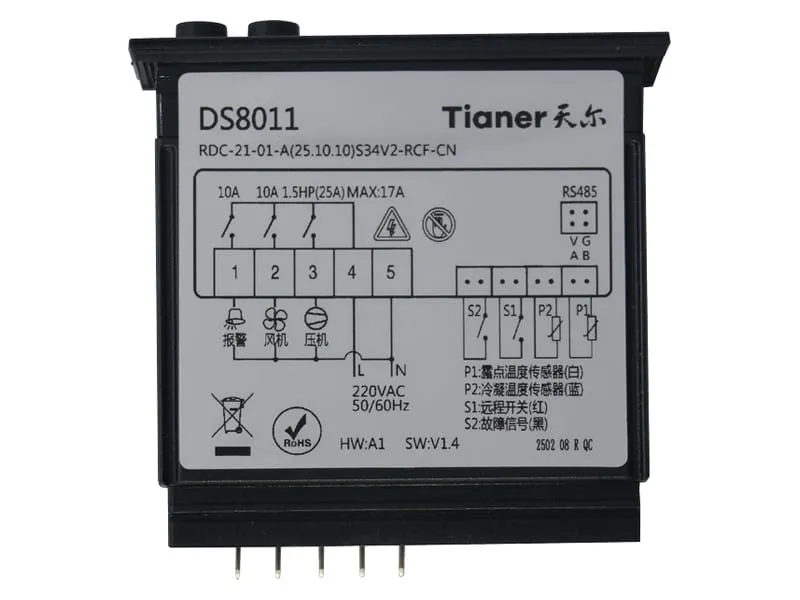

Automatically records cumulative operating hours and includes self-diagnostic functionality with alarm codes and protective measures for enhanced reliability.
Complies with the Montreal Protocol, utilizing R407C refrigerant with zero ozone depletion potential, meeting global environmental standards.
Equipped with a constant-pressure expansion valve for automatic refrigerant adjustment across varying operating conditions.
Features dual anti-freeze protection (temperature and pressure) to optimize energy efficiency and extend equipment lifespan.
