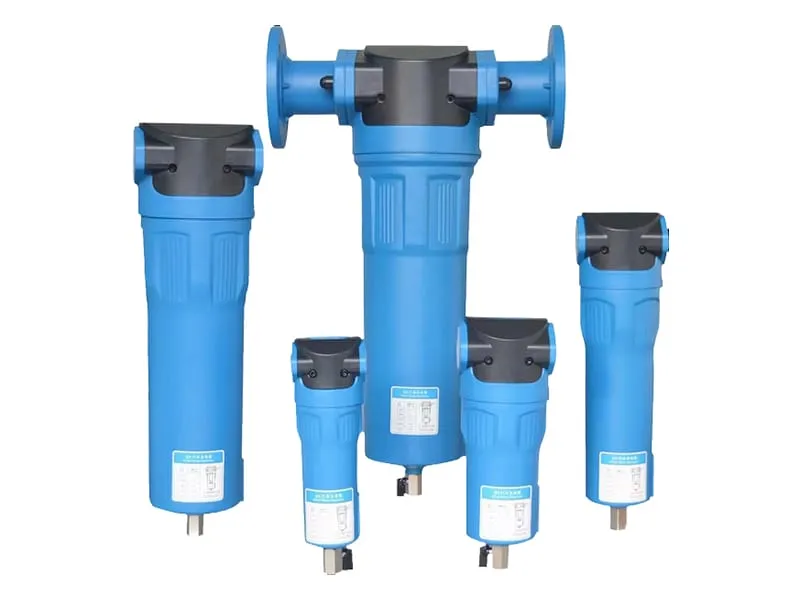

The cyclone water separator is an essential component for removing water from compressed air before it enters the compressed air dryer. By installing the separator upstream of filtration and drying equipment, up to 99% of liquid water can be effectively eliminated, enhancing the performance and efficiency of downstream purification systems.
The air compressor water separator can be flexibly installed at multiple locations within the compressed air system, after the air compressor, before the aftercooler, or after the air receiver tank. This versatility ensures maximum water removal tailored to different system configurations, supporting reliable operation and extended equipment life.
"*" stands for filtration grade

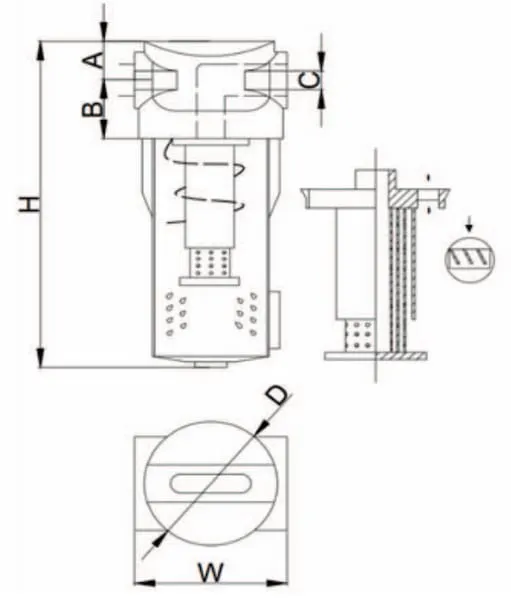

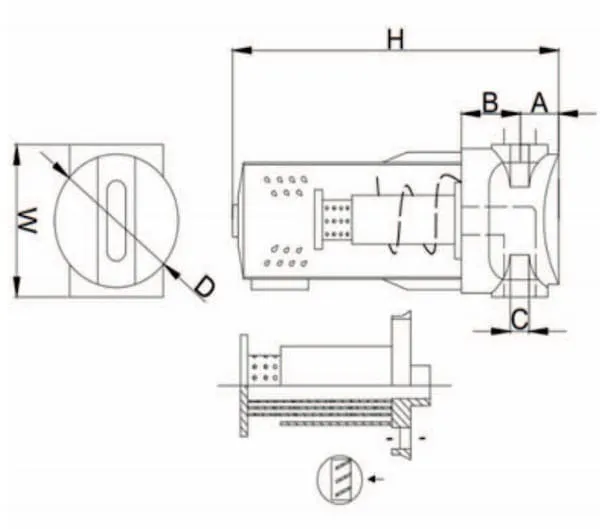

| Filter model | Air flow rate (m³/min) | Connection size | H (mm) | W (mm) | A (mm) | B (mm) |
|
|
0.6-2 | 3/4″ | 235 | 95 | 32 | 51 |
|
|
3.0-5.0 | 1″ | 276 | 95 | 32 | 51 |
|
|
6.0-8.0 | 1-1/2″ | 302 | 125 | 38 | 65 |
|
|
9.0-15.0 | 1-1/2″ | 420 | 125 | 38 | 65 |
|
|
16.0-30.0 | 2″ | 545 | 170 | 46 | 82 |
|
|
30-40 | 2-1/2″ | 640 | 205 | 60 | 100 |
|
|
40-50 | 3″ | 792 | 205 | 60 | 100 |

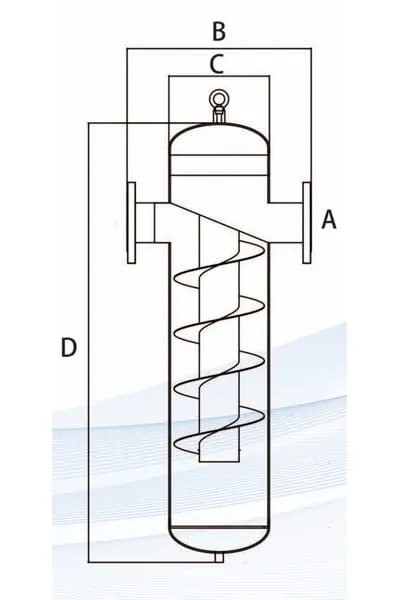

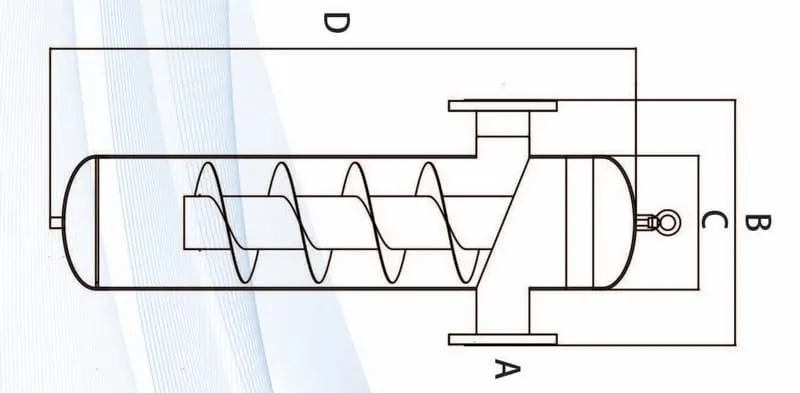

| Filter model | Air flow rate (m³/min) | Connection size A | Barrel diameter B (mm) | Width W (mm) | Length H (mm) |
|
|
30-40 | DN80 | 219 | 465 | 1010 |
|
|
40-60 | DN100 | 219 | 465 | 1160 |
|
|
60-80 | DN125 | 273 | 500 | 1195 |
|
|
80-100 | DN150 | 325 | 565 | 1290 |
|
|
100-180 | DN200 | 426 | 726 | 1533 |
|
|
180-260 | DN250 | 500 | 860 | 1469 |
|
|
260-350 | DN300 | 650 | 950 | 1728 |
