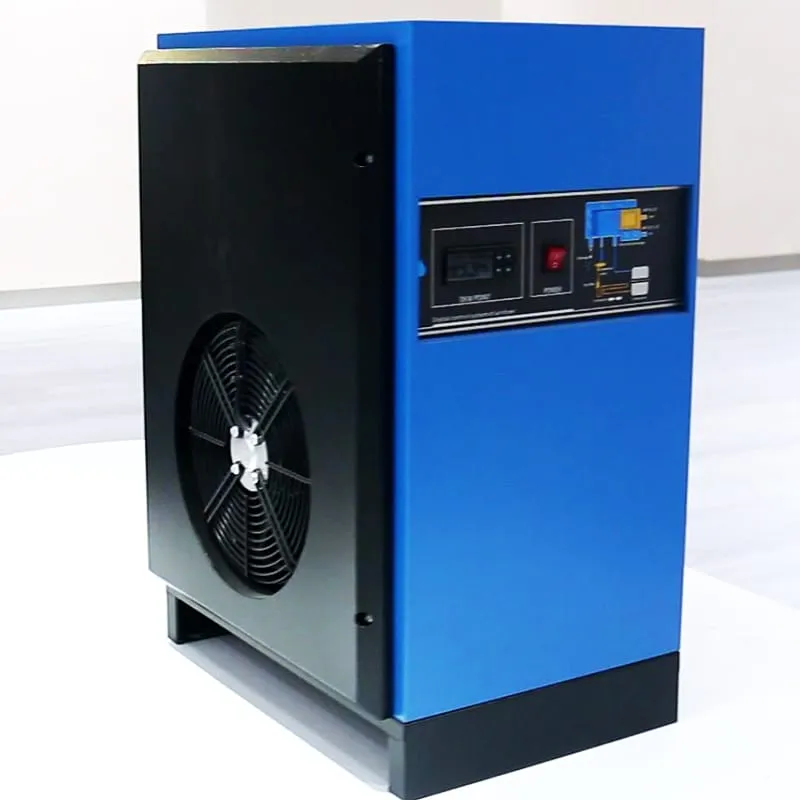

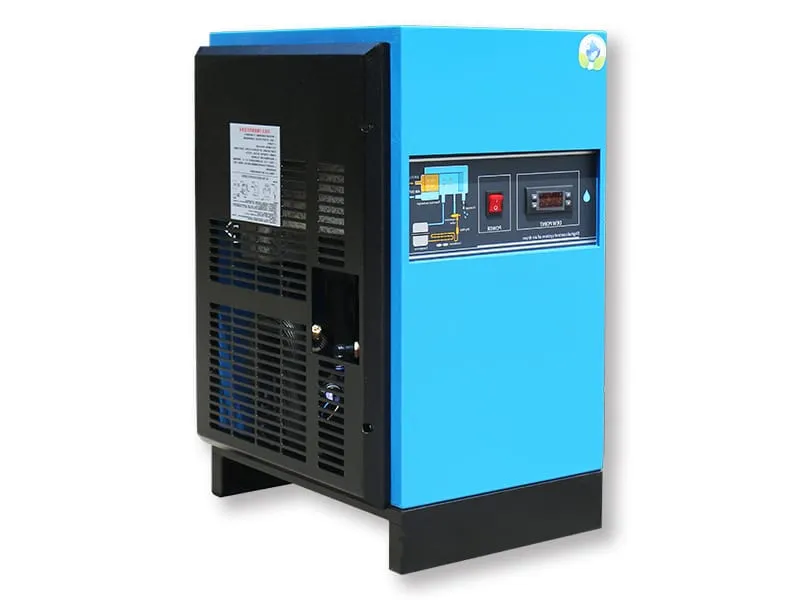

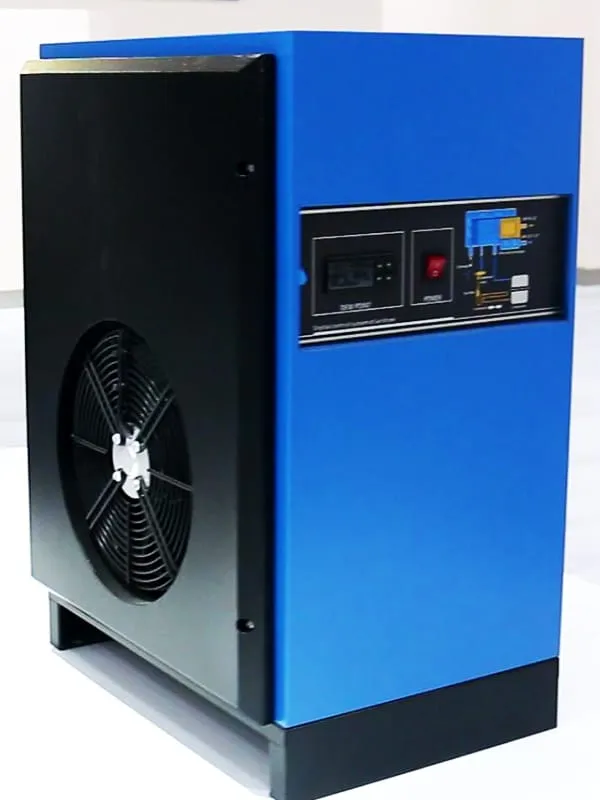

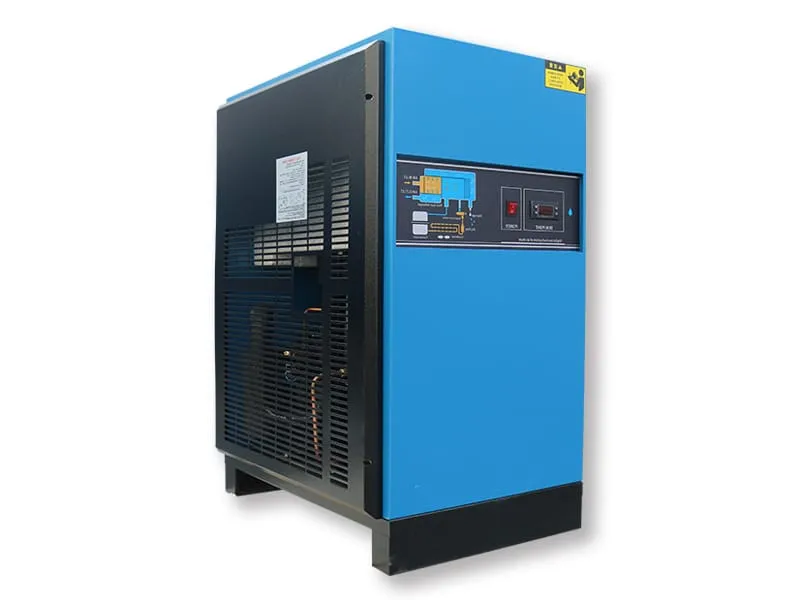

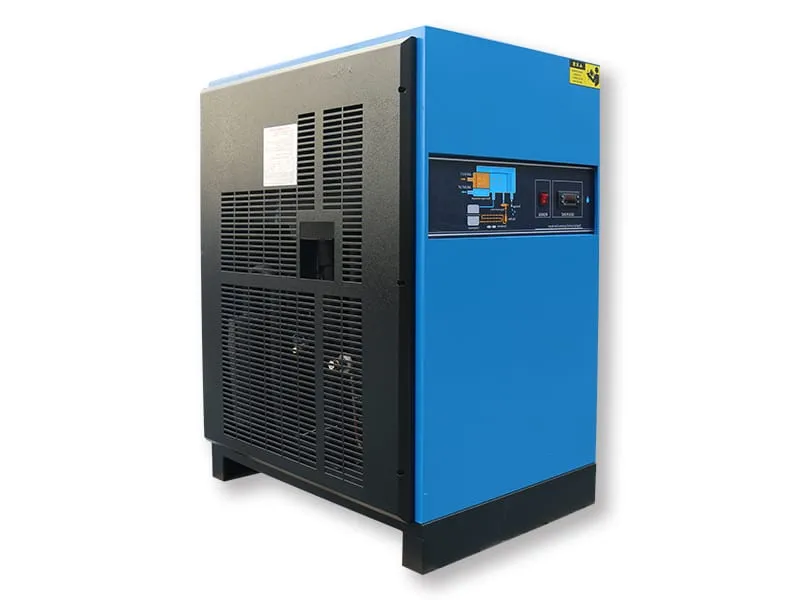

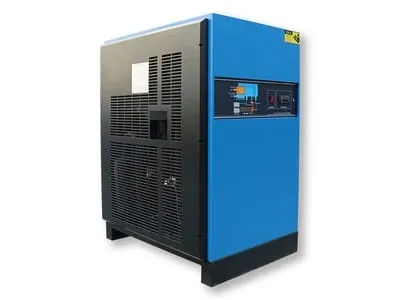

The air-cooled refrigerated air dryer integrates plate heat exchanger technology with environmentally responsible design, ensuring both operational efficiency and eco-friendly performance. The system operates by using a refrigeration cycle in combination with a high-efficiency plate heat exchanger to cool compressed air below its dew point, causing moisture to condense and be effectively discharged, thereby delivering dry and clean air for industrial use.
The air-cooled refrigerated air dryers can be optionally equipped with IoT components, enabling remote monitoring of the dryer via smartphones or other connected display terminals. This allows users to access real-time performance data and manage operations efficiently and conveniently.
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) | Air pipe connection | Evaporator type | Cooling method | Refrigerant | Total weight (kg) | Dimensions (L×W×H) (mm) |
|
|
1.2 | 220V/50Hz | 0.35 | RC3/4' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 30 | 480×380×665 |
|
|
2.4 | 220V/50Hz | 0.53 | RC3/4' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 39 | 520×410×725 |
|
|
3.6 | 220V/50Hz | 0.765 | RC1' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 55 | 640×520×850 |
|
|
6.5 | 220V/50Hz | 1.279 | RC1-1/2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 72 | 700×540×950 |
|
|
8.5 | 220V/50Hz | 1.619 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 88 | 770×590×990 |
|
|
10.5 | 220V/50Hz | 1.969 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 100 | 770×590×990 |
|
|
13 | 220V/50Hz | 2.5 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 104 | 800×610×1030 |

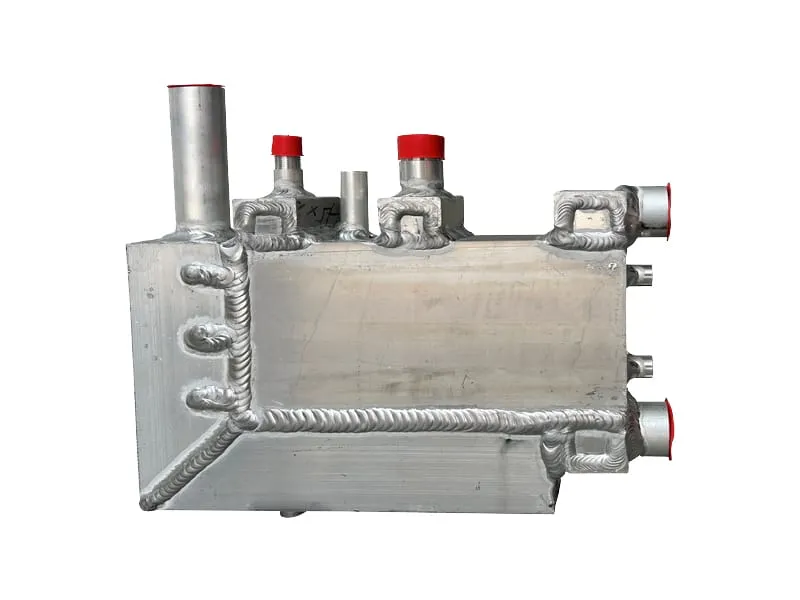

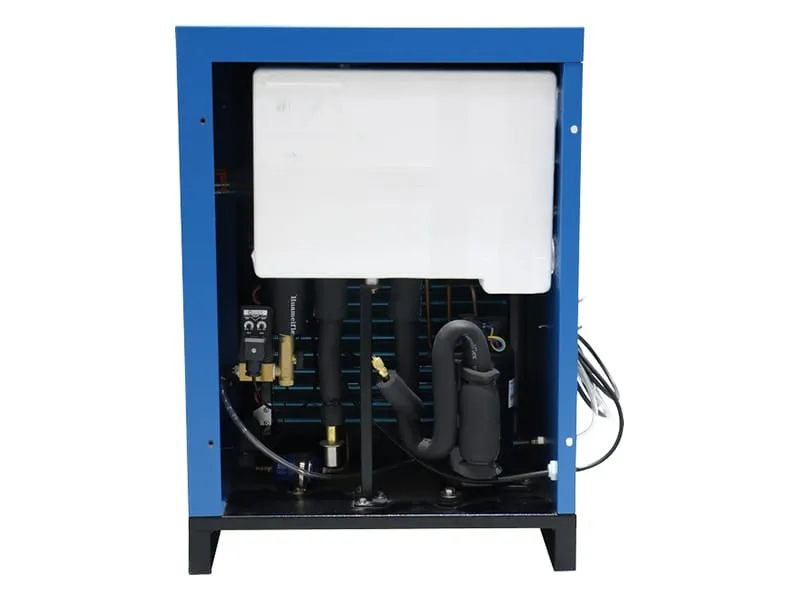

Incorporates an aluminum alloy three-in-one heat exchanger with an enlarged precooler, minimizing process cooling losses and maximizing thermal recovery.
Improves compressed air discharge temperature, effectively reducing the residual moisture content.
Integrated heat exchanger features flow guide fins for uniform heat transfer.
Equipped with a built-in air-water separator and stainless steel mesh filter for thorough moisture separation.

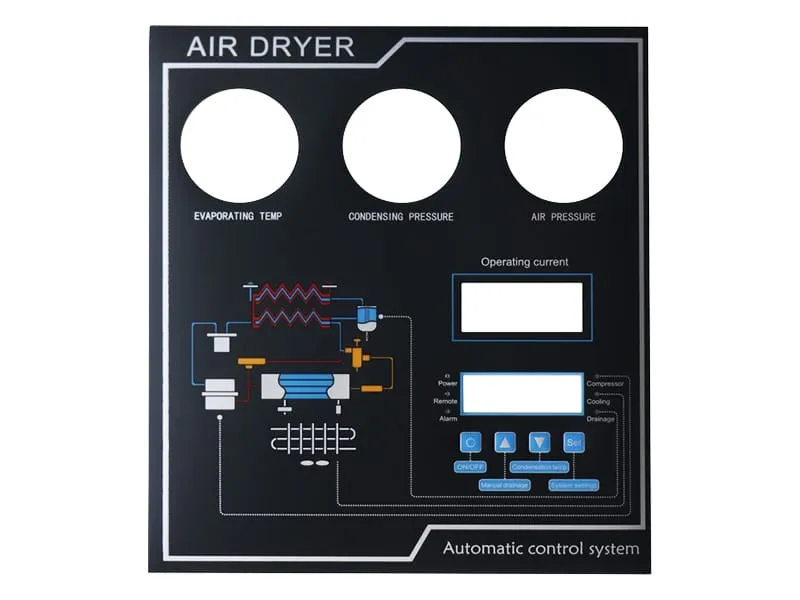

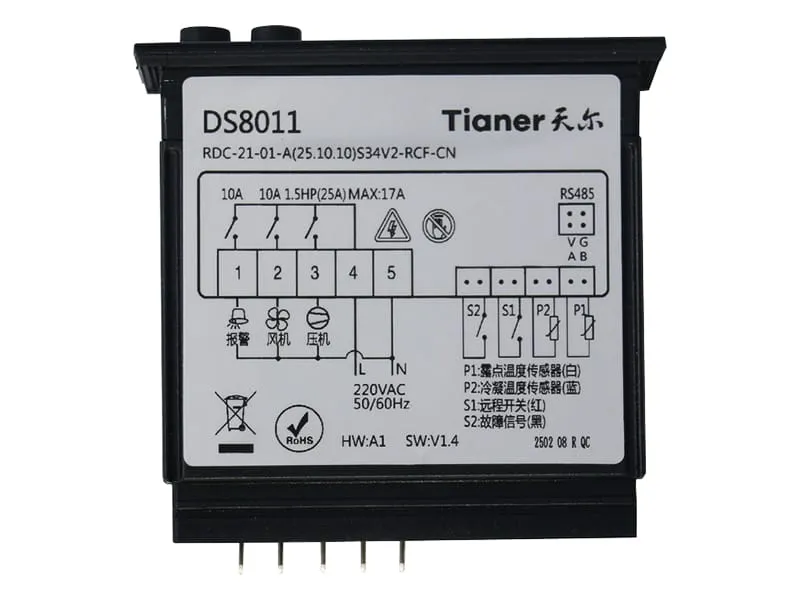

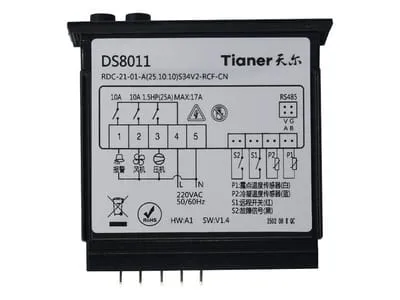

Multi-point temperature and pressure monitoring with real-time dew point display.
Automatic recording of cumulative operating hours, along with self-diagnostic capabilities that display alarm codes and initiate protective functions when needed.
Complies with the Montreal Protocol by utilizing R134a and R410A refrigerants with zero ozone depletion potential, meeting the requirements of international markets.

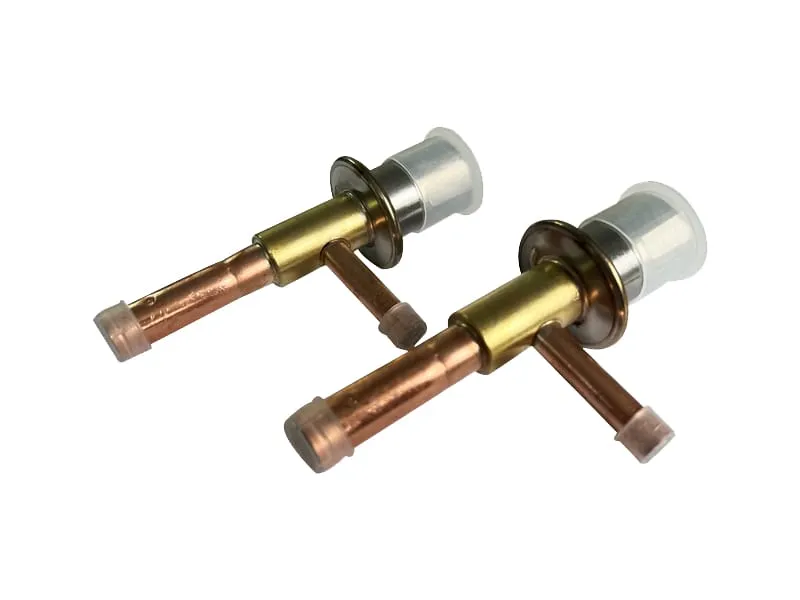

Standardized with a constant-pressure expansion valve for automatic refrigerant adjustment across diverse operating conditions.
Features dual anti-freeze protection (temperature and pressure), ensuring energy efficiency while extending equipment lifespan.
