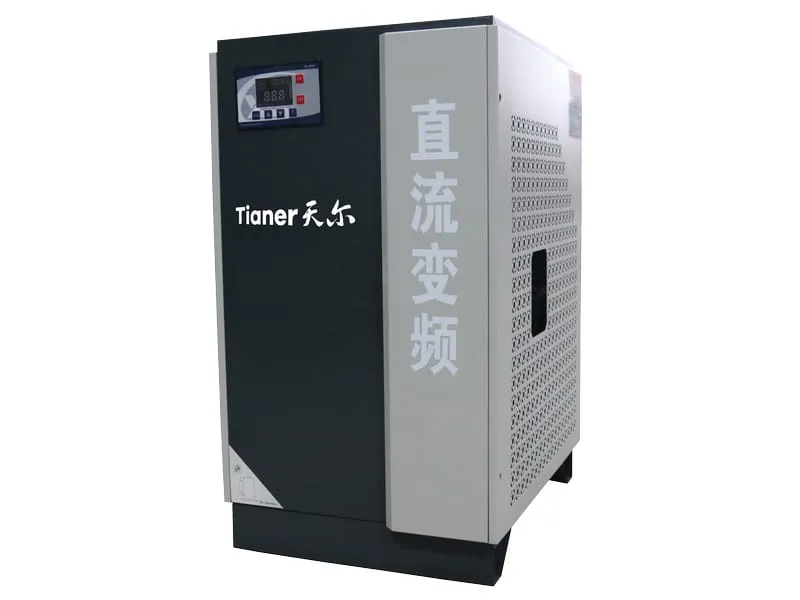

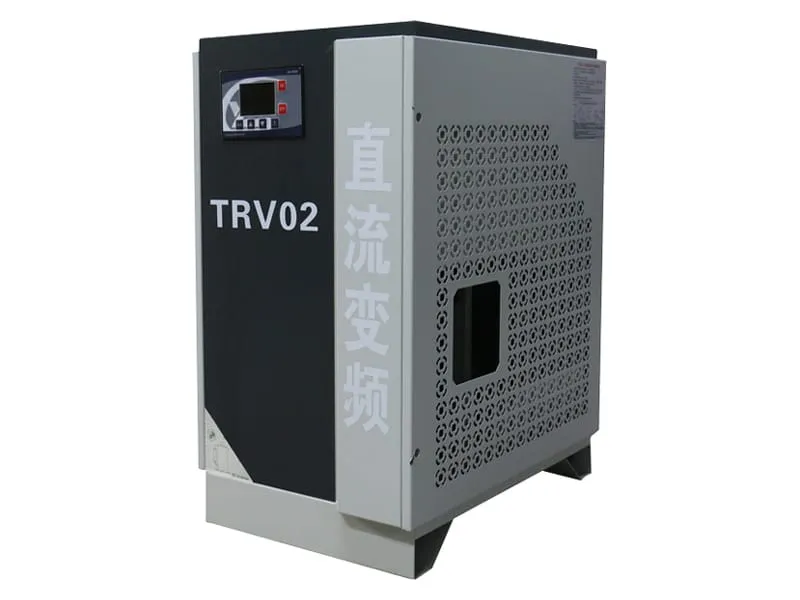

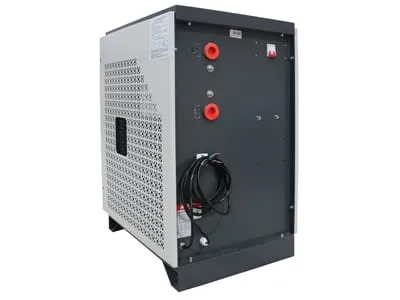

Variable Speed Drive (VSD) equipped refrigeration dryer is designed to deliver superior energy efficiency, precise dew point control, and stable performance under fluctuating operating conditions. It integrates advanced DC inverter technology with high-efficiency heat exchange, making it ideal for industries seeking to reduce energy consumption and improve system responsiveness.
The air-cooled refrigerated air dryers can be optionally equipped with IoT components, enabling remote monitoring of the dryer via smartphones or other connected display terminals. This allows users to access real-time performance data and manage operations efficiently and conveniently.
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) | Air pipe connection | Evaporator type | Cooling method | Refrigerant | Total weight (kg) | Dimensions (L×W×H) |
|
|
1.2 | 220V/50Hz | 0.28 | RC3/4' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 33 | 510×380×665 |
|
|
2.4 | 220V/50Hz | 0.34 | RC3/4' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 40 | 550×410×725 |
|
|
3.6 | 220V/50Hz | 0.37 | RC1' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 53 | 630×490×850 |
|
|
6.5 | 220V/50Hz | 0.99 | RC1-1/2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 69 | 730×540×950 |
|
|
8.5 | 220V/50Hz | 1.5 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 86 | 800×590×990 |
|
|
10.5 | 220V/50Hz | 1.6 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 91 | 800×590×990 |
|
|
13 | 220V/50Hz | 1.97 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 103 | 830×610×1030 |
Incorporates DC inverter technology that enables true automatic capacity adjustment based on system demand.
At minimum load, it consumes only about 20% of the power compared to conventional fixed-speed dryers, allowing operators to significantly reduce electricity costs—often enough to recoup the equipment investment within a year.

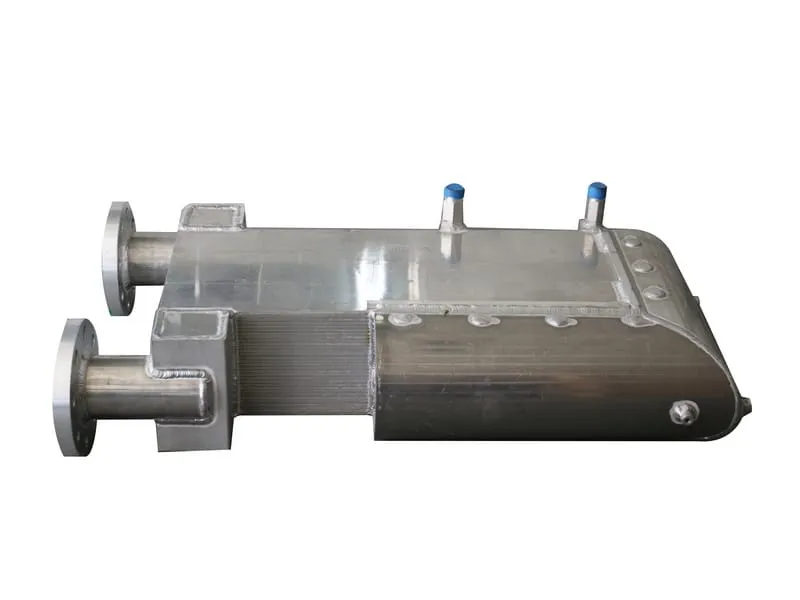

Enhanced by an aluminum alloy three-in-one plate heat exchanger working in concert with variable speed technology.
Provides precise and responsive dew point control, maintaining optimal air quality even under dynamic load conditions.
Automatically adjusts compressor frequency in response to changing operating conditions.

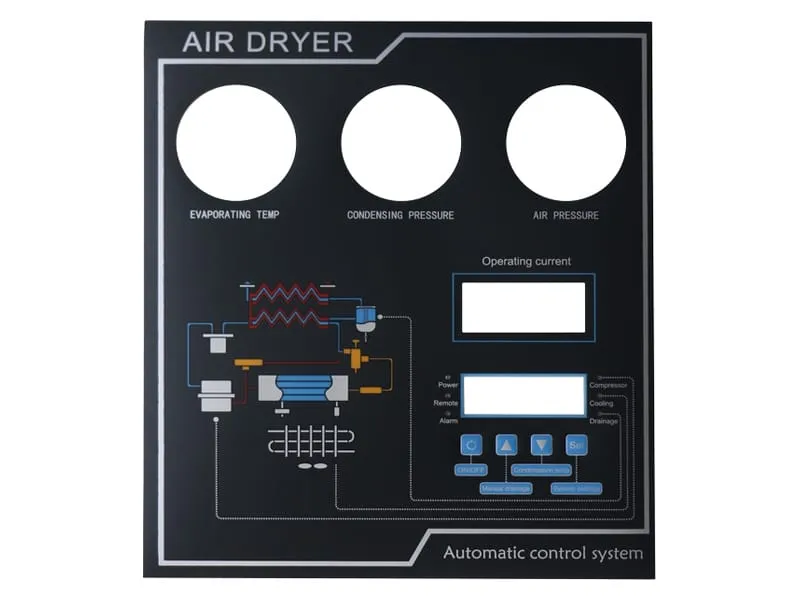

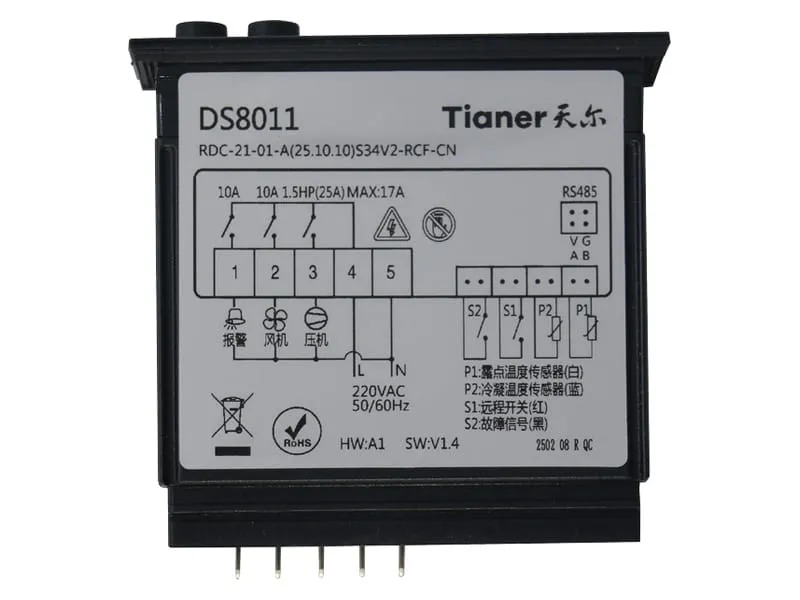

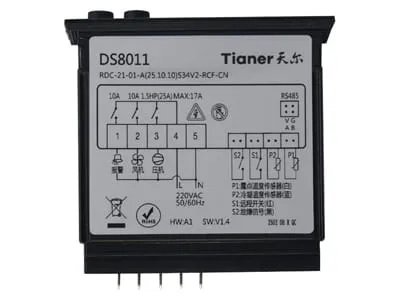

Features a comprehensive self-diagnostic system with a user-friendly interface that clearly displays operational status and alerts for optimal maintenance and reliability.
Uses R134a and R410A refrigerants compliant with the Montreal Protocol, ensuring zero ozone depletion potential and full alignment with international environmental standards.
The variable speed system extends the dryer’s operating temperature range, maintaining full-capacity output under high-temperature conditions to ensure rapid dew point stabilization.
Under extremely low ambient temperatures, it reduces output frequency to prevent freeze-ups, while continuing to maintain consistent dew point control.
