Air-Cooled Refrigerated Air Dryer - TR Series (TR15-TR200)

Energy-saving refrigeration dryers from 17 to 165m³/min or greater upon request
Air-Cooled Refrigerated Air Dryer (17m³/min and above)
  • Air-Cooled Refrigerated Air Dryer (17m³/min and above)
  • Air-Cooled Refrigerated Air Dryer (17m³/min and above)
  • Air-Cooled Refrigerated Air Dryer (17m³/min and above)
  • Air-Cooled Refrigerated Air Dryer (17m³/min and above)

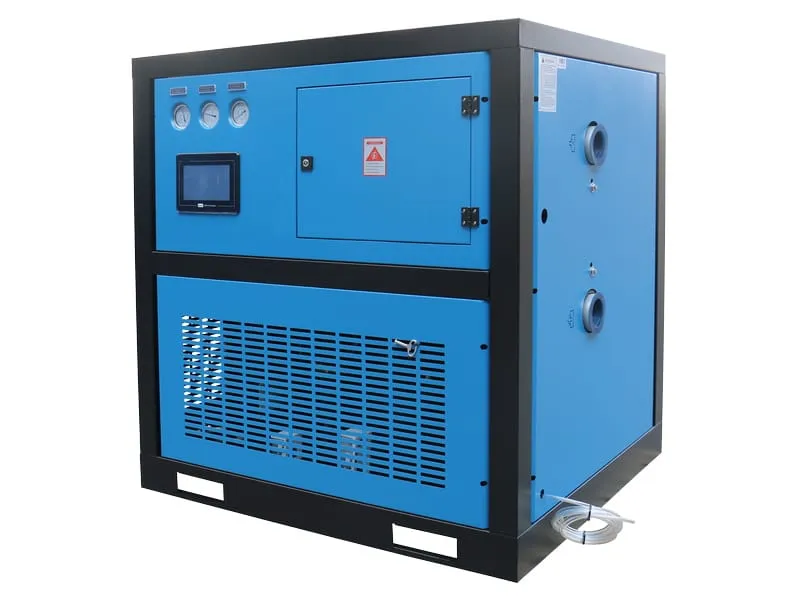

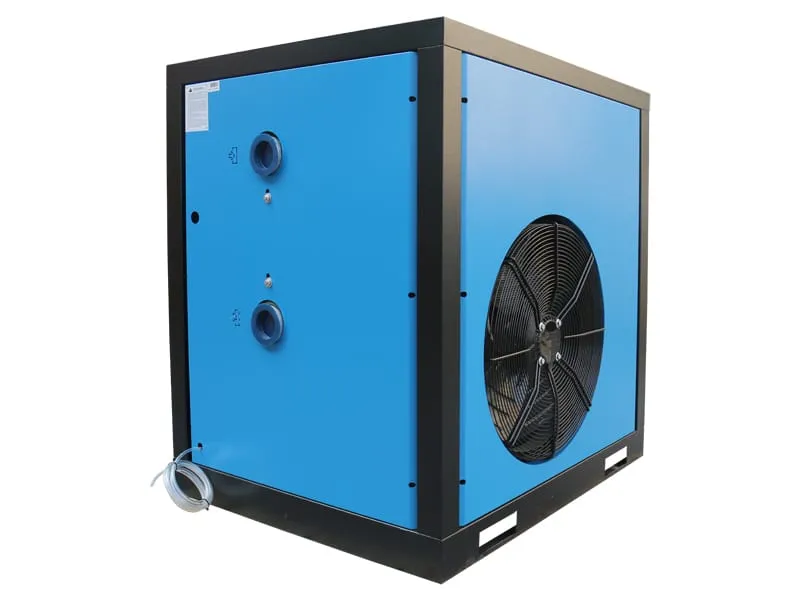

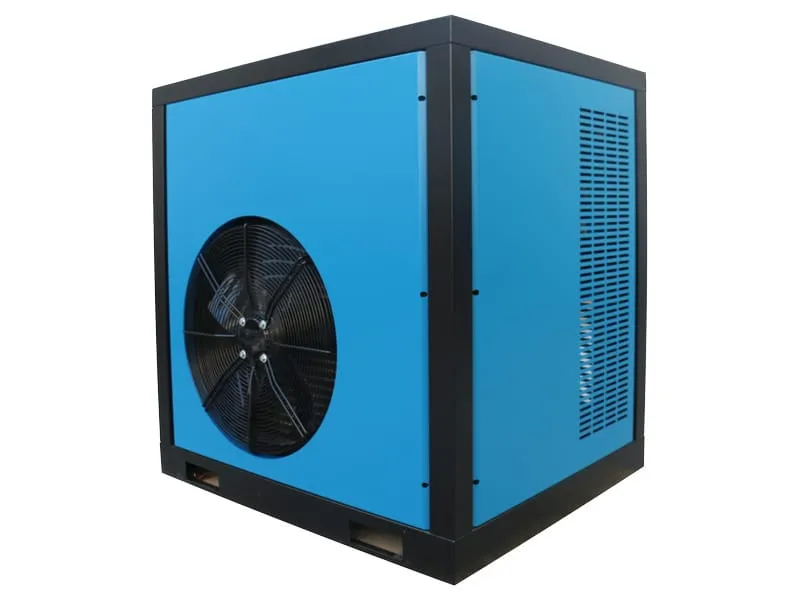

The air-cooled refrigerated air dryer combines advanced plate heat exchanger technology with environmentally responsible design to provide reliable moisture removal from compressed air systems. Ideal for large-scale industrial applications, these dryers ensure consistent performance, energy efficiency, and compliance with international environmental standards.

General Information
Ambient temperature: 0~42℃
Compressed air inlet temperature: 15~65℃
Compressed air pressure: 0.7MPa, Max.1.0MPa (or customizable)
Pressure drop: ≤0.025MPa (at 0.7MPa inlet pressure)
Pressure dew point: 3℃ (35℃ inlet temperature, 25℃ ambient temperature)
Advantages

The air-cooled refrigerated air dryers can be optionally equipped with IoT components, enabling remote monitoring of the dryer via smartphones or other connected display terminals. This allows users to access real-time performance data and manage operations efficiently and conveniently.
Request a Quote
Technical Data
Model Max. air flow rate (m³/min) Power supply Input power (kW) Air pipe connection Refrigerant Total weight (kg) Dimensions (L×W×H) Evaporator type Cooling method
TR-15 17 380V/50Hz 4.25 RC2' R407C 180 1000×850×1100 Aluminum plate heat exchanger Air-cooled finned-tube condenser
TR-20 23 380V/50Hz 5.55 RC2-1/2' R407C 236 1100×900×1160 Aluminum plate heat exchanger Air-cooled finned-tube condenser
TR-25 27 380V/50Hz 6.58 DN80 R407C 270 1215×950×1230 Aluminum plate heat exchanger Air-cooled finned-tube condenser
TR-30 33 380V/50Hz 7.2 DN80 R407C 335 1425×1000×1480 Aluminum plate heat exchanger Air-cooled finned-tube condenser
TR-40 42 380V/50Hz 10.55 DN100 R407C 439 1575×1100×1640 Aluminum plate heat exchanger Air-cooled finned-tube condenser
TR-50 55 380V/50Hz 12.86 DN100 R407C 580 1630×1150×1760 Aluminum plate heat exchanger Air-cooled finned-tube condenser
TR-60 65 380V/50Hz 13.1 DN125 R407C 720 1980×1450×1743 Aluminum plate heat exchanger Air-cooled finned-tube condenser
TR-80 85 380V/50Hz 16.02 DN125 R407C 920 2055×1450×1743 Aluminum plate heat exchanger Air-cooled finned-tube condenser
TR100 110 380V/50Hz 21.72 DN150 R407C 1150 2460×1800×1960 Aluminum plate heat exchanger Air-cooled finned-tube condenser
TR120 130 380V/50Hz 26.3 DN150 R407C 1380 2100×2220×2110 Aluminum plate heat exchanger Air-cooled finned-tube condenser
TR150 165 380V/50Hz 32.28 DN150 R407C 1725 2300×2420×2110 Aluminum plate heat exchanger Air-cooled finned-tube condenser
TR200↑ Technical data available on request

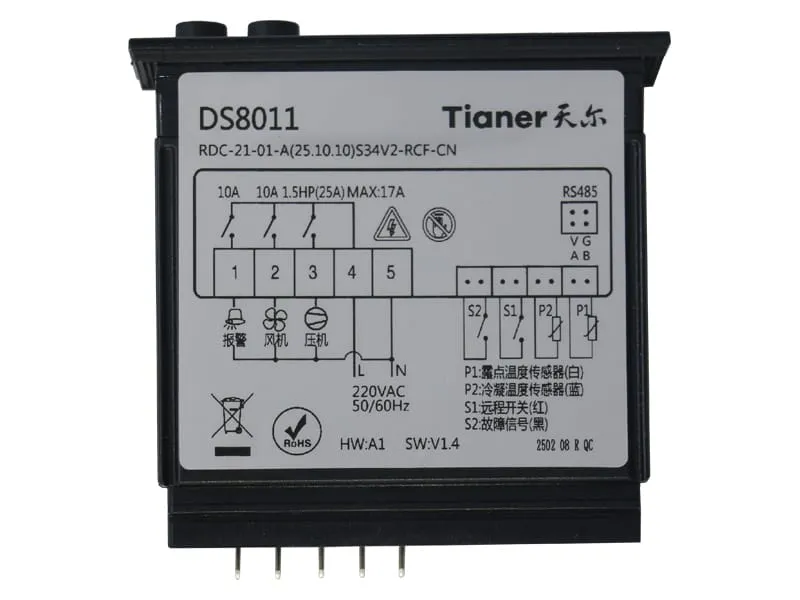

Intelligent Control and Protection

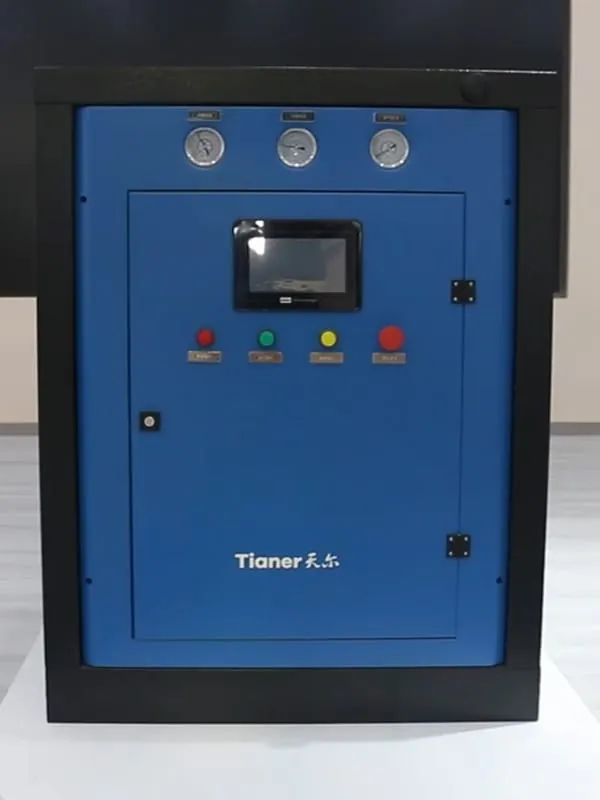

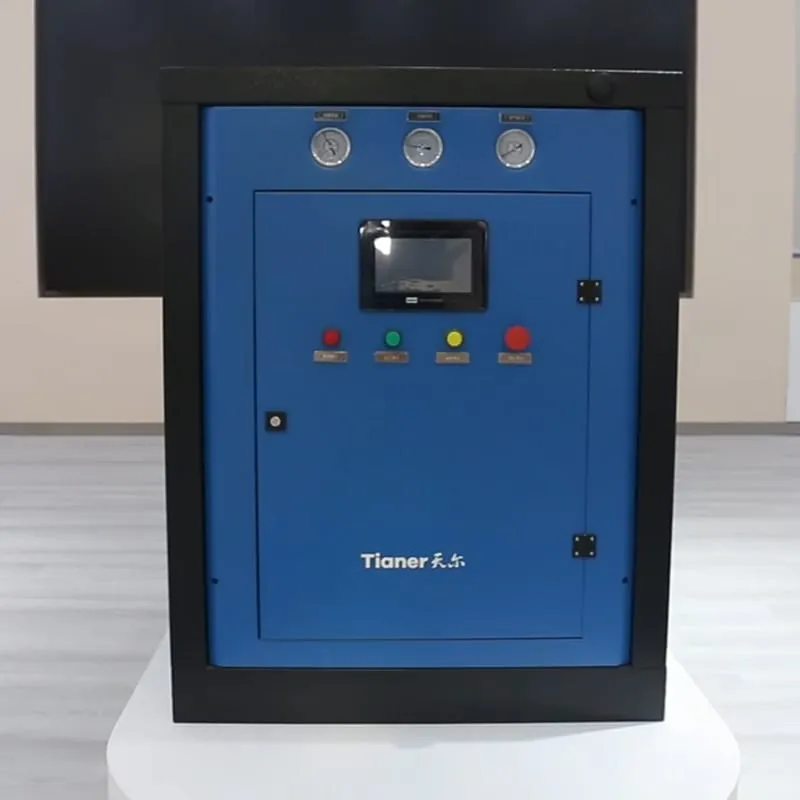

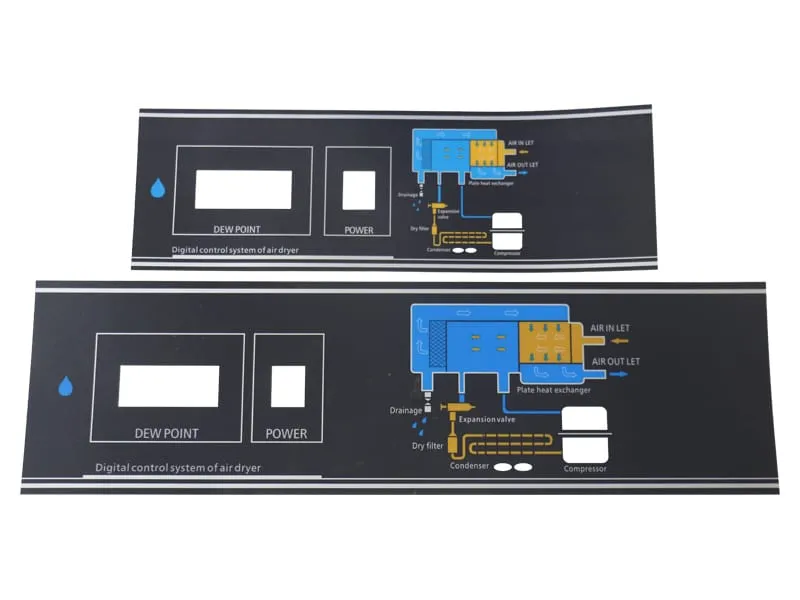

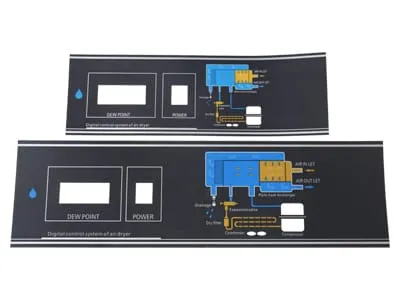

Display Interface: True color touch screen, running status and dew point temperature display
Anti-Freezing Protection: Automatic temperature control/antifreeze solenoid valve
Temperature Control: Automatic control of condensing temperature and dew point temperature
High Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
Low Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
Remote Control: Standard configuration of remote connection dry contact, RS485 expansion interface
Air-Cooled Refrigerated Air Dryer (17m³/min and above)
Features

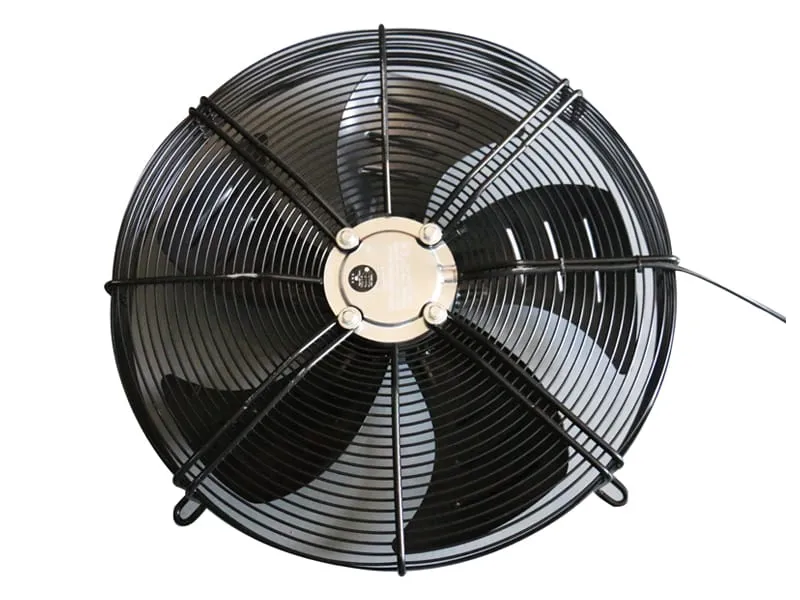

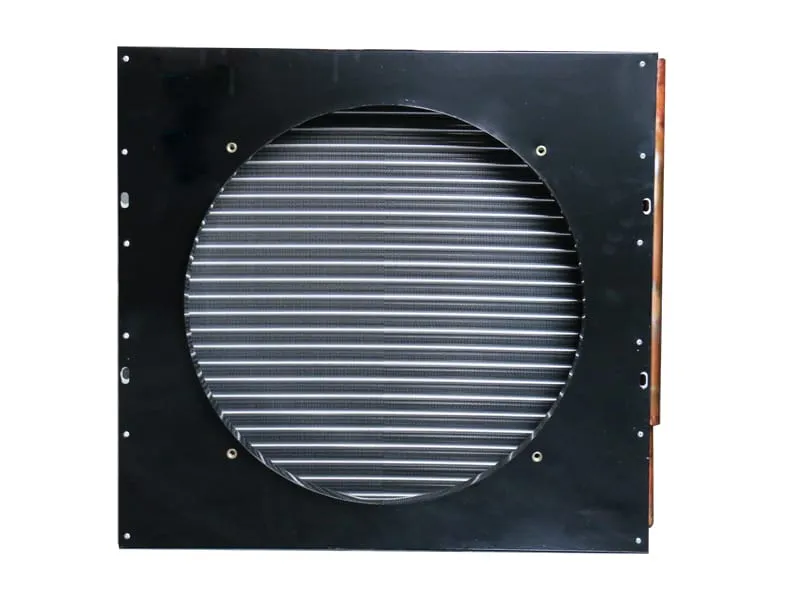

Energy-saving design

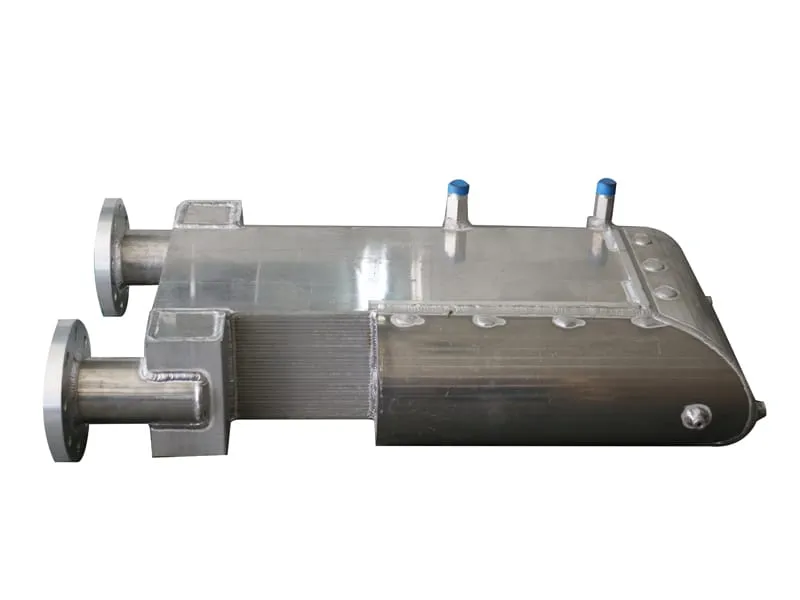

Utilizes an aluminum alloy three-in-one heat exchanger with an enlarged precooler, minimizing process-related refrigeration losses and maximizing thermal recovery.
Enhances compressed air discharge temperature, effectively reducing residual moisture content.

High efficiency

Integrated heat exchanger includes flow guide fins for uniform heat transfer.
Built-in air-water separator with stainless steel mesh filter ensures thorough moisture separation.

Intelligent control

Features multi-point temperature and pressure monitoring, real-time dew point display, and automatic logging of cumulative operating hours.
Equipped with self-diagnostic capabilities that display alarm codes and initiate protective functions as needed.

Environmentally friendly

Compliant with the Montreal Protocol, utilizing R134a and R410A refrigerants with zero ozone depletion potential, fully meeting international environmental regulations.

Stable operation

Standardized with a constant-pressure expansion valve for automatic refrigerant adjustment across diverse operating conditions.
Equipped with dual anti-freeze protection (temperature and pressure) for enhanced energy efficiency and extended equipment lifespan.
