Compressed Air Filters Compressed Air Filters

Compressed Air Filters

Compressed air filters effectively remove moisture, particulates, oil mist, and other contaminants from compressed air through mechanisms such as interception, inertia, diffusion, and gravity separation. This ensures the delivery of clean, dry compressed air, enhancing system performance and supporting reliable operation across various industrial applications.

Combined with compressed air dryers, our filters are engineered to minimize blockages, and moisture accumulation, ensuring efficient, long-lasting compressor performance. By efficiently removing contaminants from the air stream, they significantly reduce energy consumption and lower maintenance expenses. Our filtration solutions also help to extend the service life of compressed air systems and downstream equipment by preventing contamination-related wear and tear, ensuring greater operational reliability and cost efficiency over time.

Browse our comprehensive product range to find the ideal filtration solution tailored to the specific needs of your compressed air systems, ensuring maximum performance, energy efficiency, and long-term reliability.

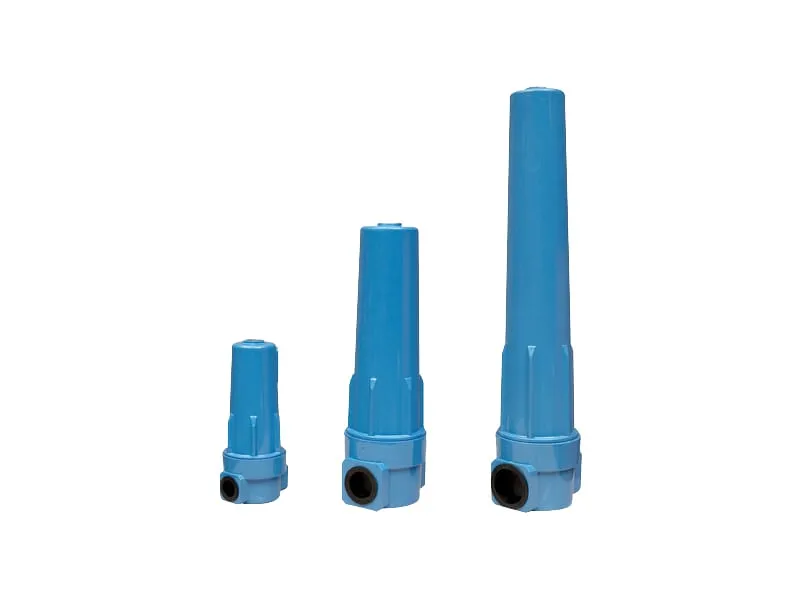

    • SOY Series Precision Filters
      Precision Filters

      The precision compressed air filters offer reliable moisture and contaminant removal for compressed air systems with flow capacities from 1.2 to 88 m³/min.

      Max. working pressure: ≤1.0Mpa
      Fluid temperature: Grade C/T/A 66℃, Grade H 50℃
      Initial pressure drop: 0.01MPa
      Max. allowable pressure drop: 0.07MPa
      Hours of operation: Grade C/T/A 8,000 hours, Grade H 1,000 hours
      View Detais
    • TRF Series Ultra-Clean Precision Filters
      Ultra-Clean Precision Filters

      The ultra-clean precision compressed air filters deliver high-quality compressed air filtration for flow capacities ranging from 0.7 to 45 m³/min.

      Grade C filtration: solid 3μm, oil content 3ppm
      Grade T filtration: solid 1μm, oil content 1ppm
      Grade A filtration: solid 0.01μm, oil content 0.01ppm
      Grade X filtration: solid 0.01μm, oil content 0.003ppm
      Grade H (activated carbon) filtration: solid 0.01μm, oil content 0.001ppm
      View Detais

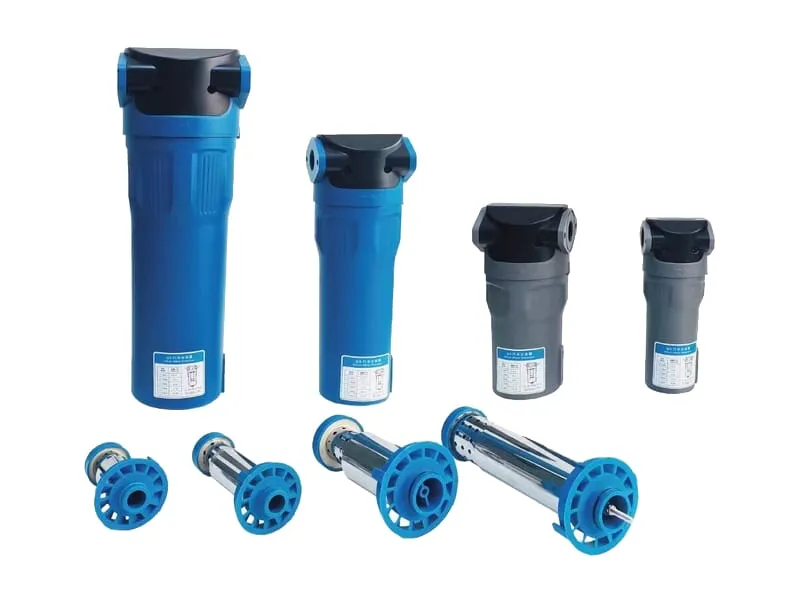

    • SRD Series Flanged Filters
      Flanged Filters

      The flanged compressed air filters and elements provide high-efficiency filtration for flow rates from 23 to 320 m³/min.

      Grade C filtration: solid 3μm, oil content 3ppm
      Grade T filtration: solid 1μm, oil content 1ppm
      Grade A filtration: solid 0.01μm, oil content 0.01ppm
      Grade X filtration: solid 0.01μm, oil content 0.003ppm
      Grade H (activated carbon) filtration: solid 0.01μm, oil content 0.001ppm
      View Detais

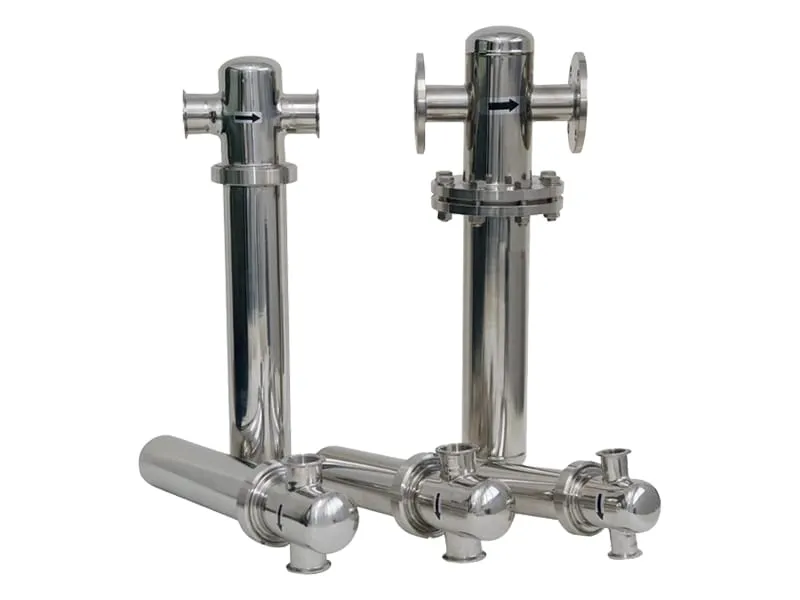

    • TRSF Series Stainless Steel Filters
      Stainless Steel Filters

      Our modular desiccant air dryers are advanced adsorption systems for cleaning and drying compressed air with flow capacities ranging from 1.2 to 3.5 m³/min.

      Grade C filtration: solid 3μm, oil content 3ppm
      Grade T filtration: solid 1μm, oil content 1ppm
      Grade A filtration: solid 0.01μm, oil content 0.01ppm
      Grade X filtration: solid 0.01μm, oil content 0.003ppm
      Grade H (activated carbon) filtration: solid 0.01μm, oil content 0.001ppm
      View Detais
    • SRD Series Carbon Steel Filters
      Carbon Steel Filters

      The carbon steel compressed air filters are designed for high-pressure applications, that effectively remove solid and liquid contaminants from compressed air with pressures below 4.0 MPa.

      Grade C filtration: solid 3μm, oil content 3ppm
      Grade T filtration: solid 1μm, oil content 1ppm
      Grade A filtration: solid 0.01μm, oil content 0.01ppm
      Grade X filtration: solid 0.01μm, oil content 0.003ppm
      Grade H (activated carbon) filtration: solid 0.01μm, oil content 0.001ppm
      View Detais
