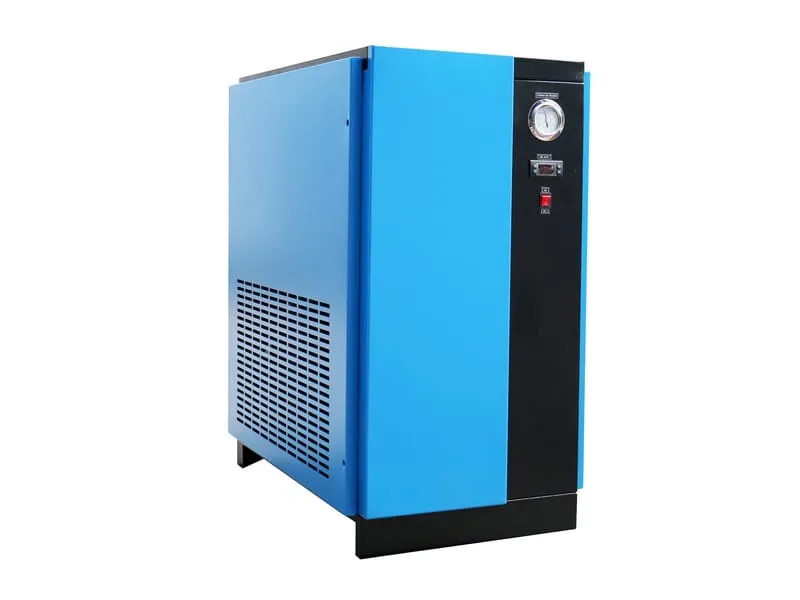

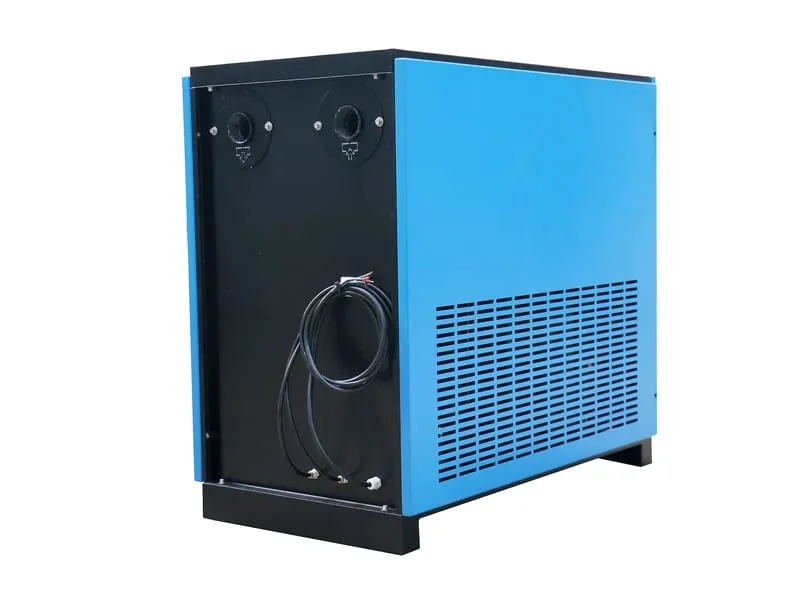

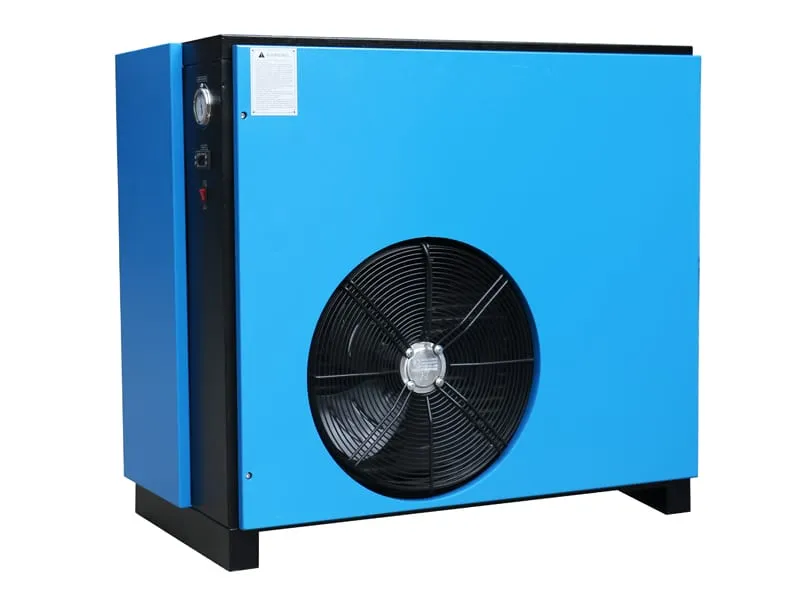

Refrigeration dryers with flow capacities ranging from 1.6 to 13 m³/min, designed for efficient moisture and contaminant removal from compressed air systems, featuring an integrated filtration solution for simplified installation and enhanced performance.
The air-cooled refrigerated air dryers can be optionally equipped with IoT components, enabling remote monitoring of the dryer via smartphones or other connected display terminals. This allows users to access real-time performance data and manage operations efficiently and conveniently.
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) | Air pipe connection | Evaporator type | Compatible air filter model | Air filter grade | Cooling method | Refrigerant | Dew point | Total weight (kg) | Dimensions (L×W×H) |
|
|

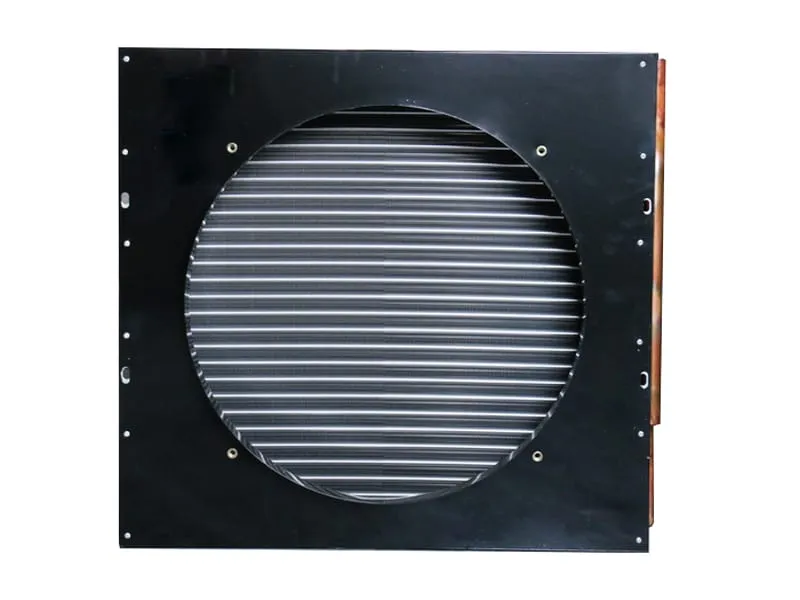

1.6 | 220V/50Hz | 0.35 | RC3/4" | Aluminum plate heat exchanger | TRF-01 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R134a | 2~10℃ | 82 | 800×460×850 |
|
|
2.4 | 220V/50Hz | 0.53 | RC3/4" | Aluminum plate heat exchanger | TRF-02 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R134a | 2~10℃ | 90 | 900×560×885 |
|
|
3.6 | 220V/50Hz | 0.765 | RC1" | Aluminum plate heat exchanger | TRF-03 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R410A | 2~10℃ | 98 | 950×610×885 |
|
|
6.5 | 220V/50Hz | 1.279 | RC1-1/2" | Aluminum plate heat exchanger | TRF-06 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R410A | 2~10℃ | 110 | 1150×660×1005 |
|
|
8.5 | 220V/50Hz | 1.619 | RC2" | Aluminum plate heat exchanger | TRF-08 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R410A | 2~10℃ | 122 | 1200×660×1200 |
|
|
10.5 | 220V/50Hz | 1.969 | RC2" | Aluminum plate heat exchanger | TRF-10 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R410A | 2~10℃ | 138 | 1200×660×1200 |
|
|
13 | 220V/50Hz | 2.5 | RC2" | Aluminum plate heat exchanger | TRF-12 | Grade C/T/A/X with auto drain | Air-cooled finned-tube condenser | R410A | 2~10℃ | 154 | 1200×660×1200 |

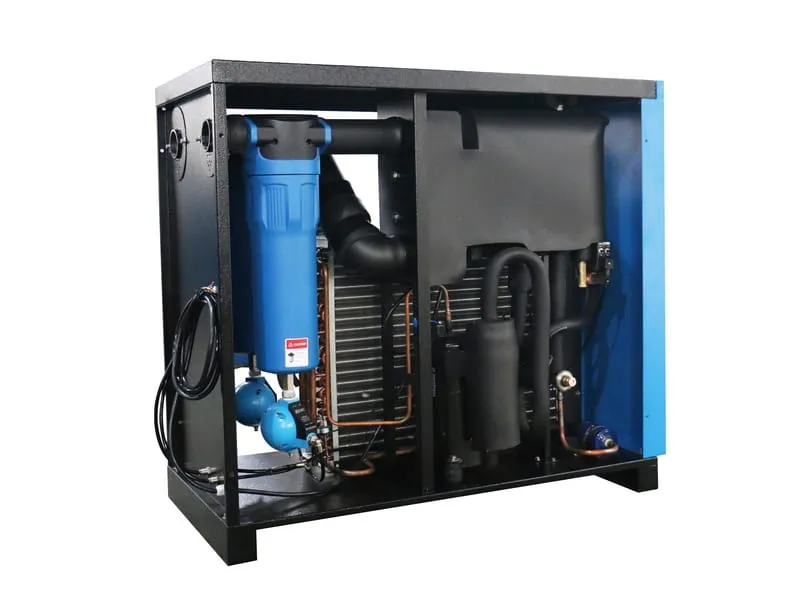

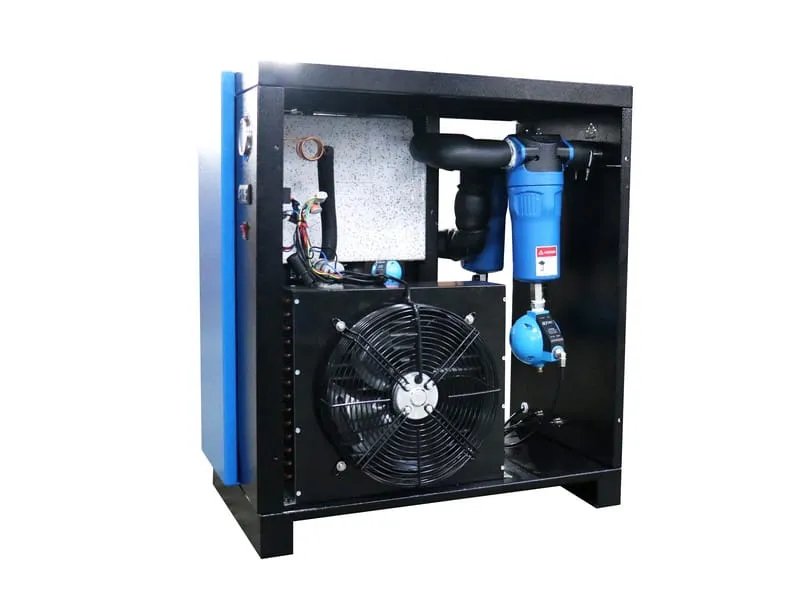

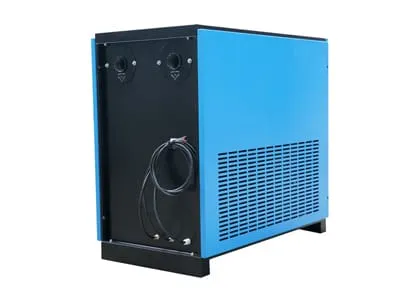

Combines an environmentally friendly refrigerated air dryer with high-performance filtration in a compact, skid-mounted unit.

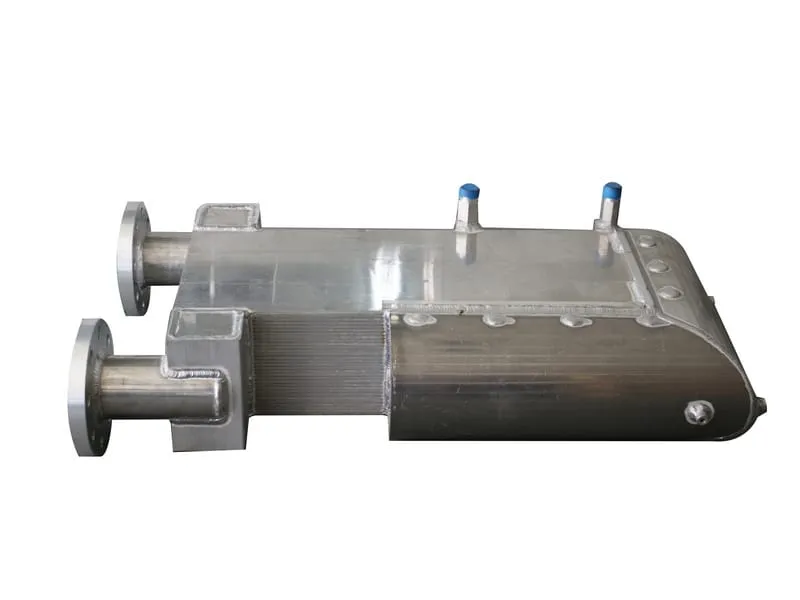

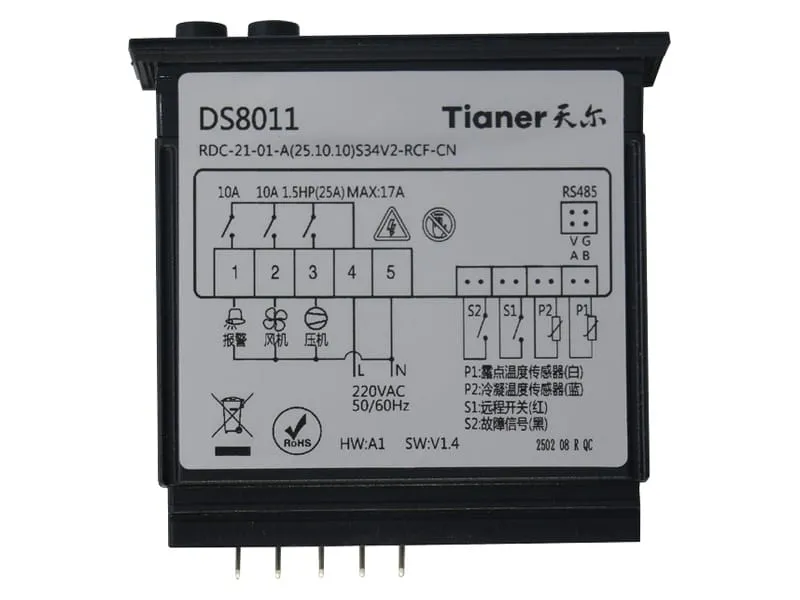

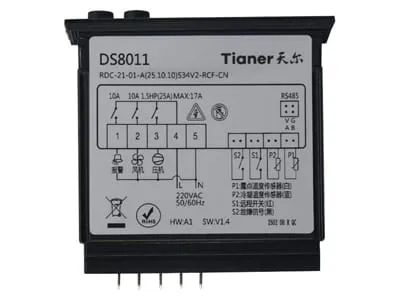

Features an aluminum alloy three-in-one plate heat exchanger, eco-friendly refrigerant, and microcomputer automatic control for intuitive operation.

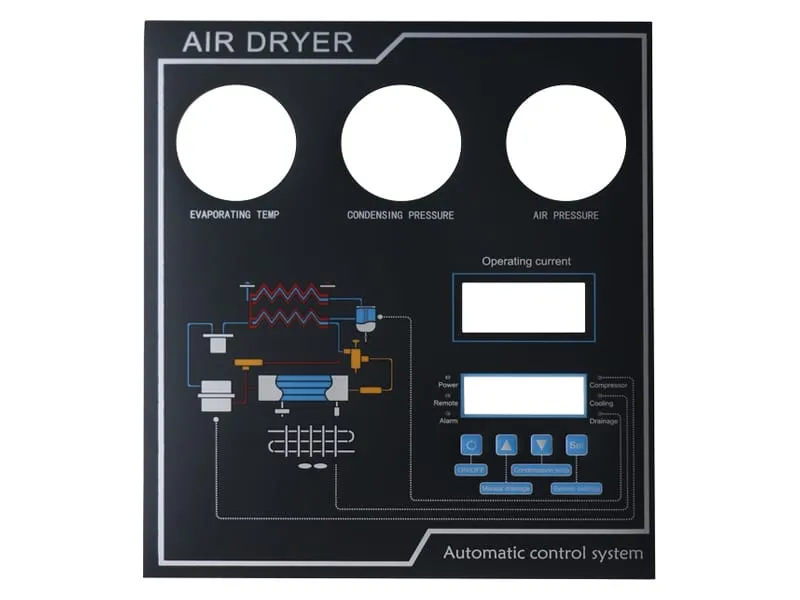

The system provides direct dew point display along with self-diagnostic and protective functions, offering user-friendly operation without the need for complex piping, simply connect to an air compressor and begin use.
Equipped with custom-engineered, high-efficiency filter cartridges made from imported filtration materials.
The expanded effective filtration area ensures superior oil and particulate removal, along with an extended service life.
Engineered to deliver clean, oil-free, moisture-free, and particle-free compressed air, ideal for demanding applications such as laser cutting and other precision industrial processes.
