Desiccant Air Dryer

The desiccant air dryers are high-efficiency dehumidification systems that use adsorbent materials to remove moisture from compressed air, making them ideal for moisture-sensitive applications and environments requiring ultra-dry air and low dew points, such as electronics, pharmaceuticals, and cold regions.

Based on regeneration methods and structural configurations, our desiccant dryers are available in three distinct types:

    • Heated Purge Dryer Combines the advantages of heatless and heated regeneration, offering low energy consumption and stable dew point performance. Suitable for low-temperature environments or applications requiring high air quality.
    • Blower Purge Dryer Uses externally heated ambient air for regeneration, minimizing compressed air consumption and reducing operating costs—ideal for large-scale industrial systems.
    • Modular Dryer Features a compact, modular aluminum structure paired with high-efficiency composite molecular sieves, ensuring rapid adsorption without channeling effects. Allows flexible installation and parallel expansion to meet varying capacity needs.

All configurations support intelligent control and remote monitoring, delivering clean, dry compressed air with consistent reliability for industrial systems

Advantages
  • Drying Capability
    Description: Deep drying performance with dew points down to -70°C
    Benefit: Suitable for industries requiring extremely dry air, such as electronics, pharmaceuticals, food, and precision manufacturing
  • Energy Efficiency
    Description: Utilizes heatless regeneration, eliminating dependence on external heat sources
    Benefit: Offers greater energy savings compared to traditional systems
  • Intelligent Automation
    Description: Compatible with DCS systems for industrial automation and remote management, supports optional IoT components
    Benefit: Enables integration with Industry 4.0
  • Pressure Drop
    Description: ≤0.021 MPa
    Benefit: Minimizes energy consumption and improves system stability
  • Environmental Compliance
    Description: Utilizes eco-friendly refrigerants (R134a, R410A) that comply with international regulations
    Benefit: Ensures environmental sustainability and meets global compliance requirements

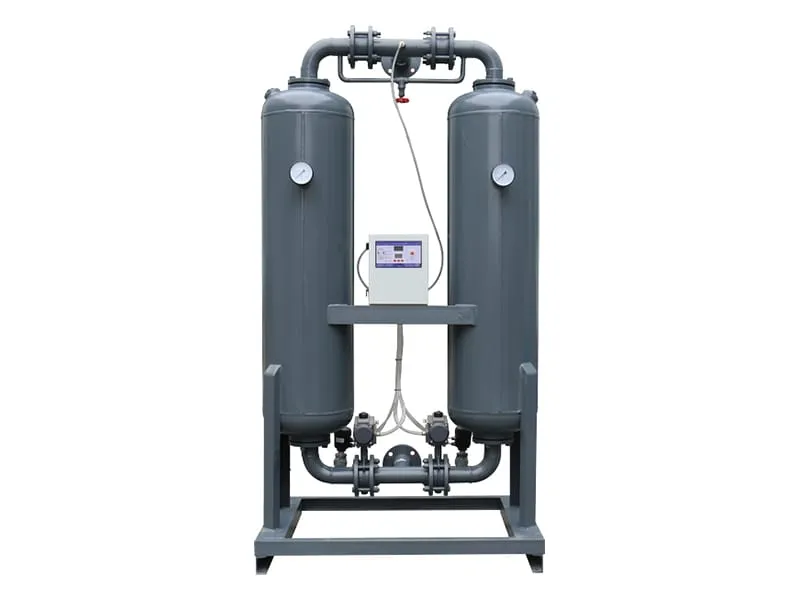

    • SXD Series Heatless Desiccant Air Dryer
      Heatless Desiccant Air Dryer

      The heatless regenerative desiccant dryer is designed for moisture removal from compressed air through heatless pressure swing adsorption (PSA).

      Compressed air inlet temperature: 2~45℃
      Compressed air pressure: 0.7MPa, Max.1.0MPa (or customizable)
      Pressure dew point: -20℃ (-40℃ customizable)
      Oil content of inlet air: 0.08ppm (0.1mg/m³)
      Solid particle size: ≤60µm
      View Detais

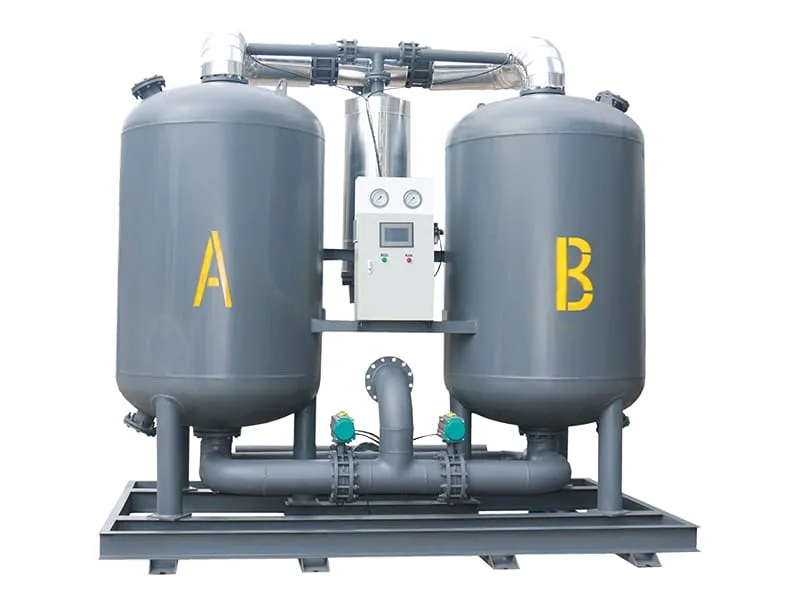

    • SRD Series Micro Heat Desiccant Air Dryer
      Micro Heat Desiccant Air Dryer

      Micro heat desiccant air dryers are designed for efficient moisture removal from compressed air through pressure swing adsorption (PSA)...

      Compressed air inlet temperature: 2~45℃
      Compressed air pressure: 0.7MPa, Max.1.0MPa (or customizable)
      Pressure dew point: -20℃ (-40℃~-70℃ customizable)
      Oil content of inlet air: 0.08ppm (0.1mg/m³)
      Solid particle size: ≤60µm
      View Detais

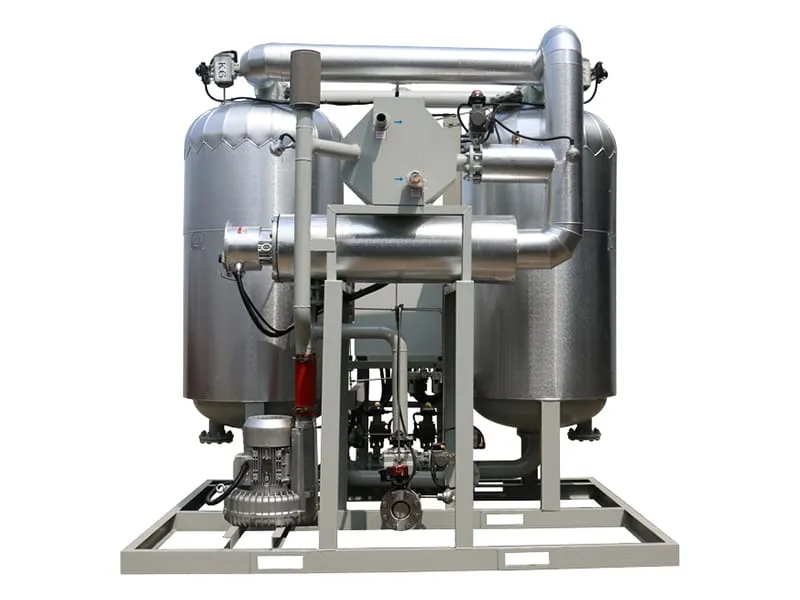

    • SRD Series Blower Purge Desiccant Air Dryer
      Blower Purge Desiccant Air Dryer

      The blower purge desiccant air dryer is an energy-efficient compressed air drying system that removes moisture by blowing and heating ambient air...

      Compressed air inlet temperature: 2~42℃
      Compressed air pressure: 0.7MPa, Max.1.0MPa
      Cooling water: ≤35℃, 0.2-0.3MPa industrial circulating water
      Pressure dew point: -20℃ (-40℃ customizable)
      Oil content of inlet air: 0.08ppm (0.1mg/m³)
      View Detais

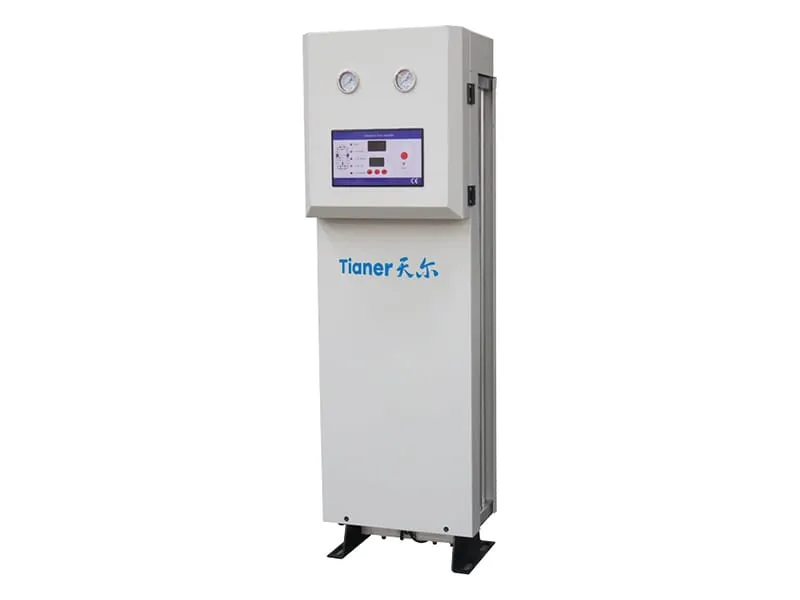

    • SRD Series Modular Desiccant Air Dryer (1.2 to 3.5m³/min)
      Modular Desiccant Air Dryer (1.2 to 3.5m³/min)

      Our modular desiccant air dryers are advanced adsorption systems for cleaning and drying compressed air with flow capacities ranging from 1.2 to 3.5 m³/min.

      Compressed air inlet temperature: 2~45℃
      Compressed air pressure: 0.7MPa, Max.1.0MPa (SPD01-SPD03 Max.1.6MPa)
      Pressure dew point: -20℃
      Oil content of inlet air: 0.08ppm (0.1mg/m³)
      Solid particle size: ≤60µm
      View Detais

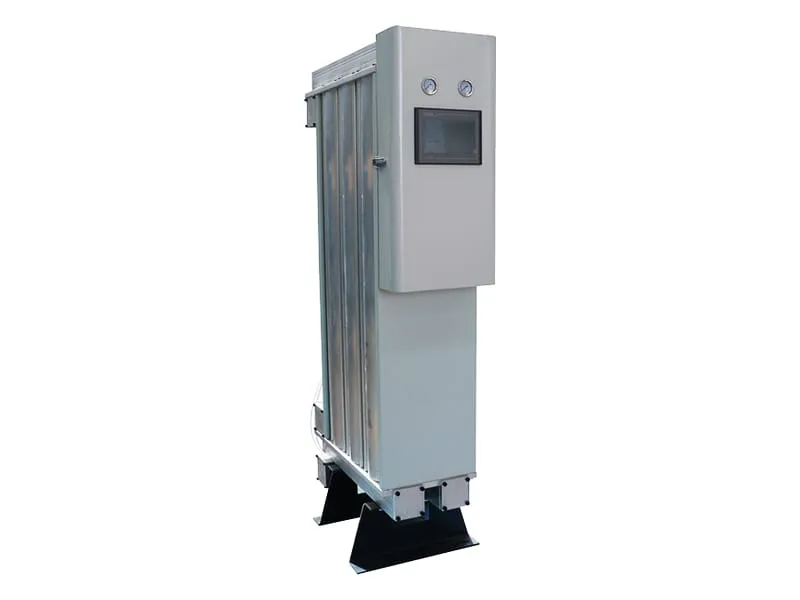

    • SRD Series Modular Desiccant Air Dryer (7 to 63m³/min)
      Modular Desiccant Air Dryer (7 to 63m³/min)

      The modular desiccant air dryer is a compact, lightweight, and highly adaptable system designed to efficiently clean and dry compressed air at flow rates ranging...

      Compressed air inlet temperature: 2~45℃
      Compressed air pressure: 0.7MPa, Max.1.0MPa (SPD01-SPD03 Max.1.6MPa)
      Pressure dew point: -20℃
      Oil content of inlet air: 0.08ppm (0.1mg/m³)
      Solid particle size: ≤60µm
      View Detais
Industry Know-How Compressed Air Treatment Solutions Tailored for Industrial Applications
Global Presence
Connected Support Wherever You Are

Whether you're looking for local assistance or global coordination, we're here to help. Reach out to us, and we'll connect you with a trusted Tianer partner in your region- quickly and personally.

E-mail: sales@tianerdryer.com

Contact Us
Our Facilities
Our FacilitiesAssembly Workshop No.1
Our FacilitiesAssembly Workshop No.2
Our FacilitiesSmart Workshop No.3

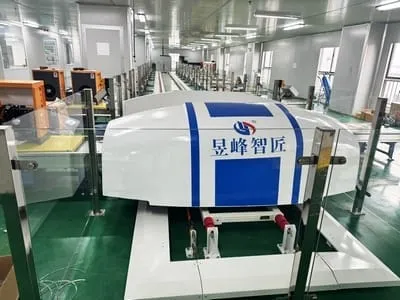

Our FacilitiesRGV Automated Production Line

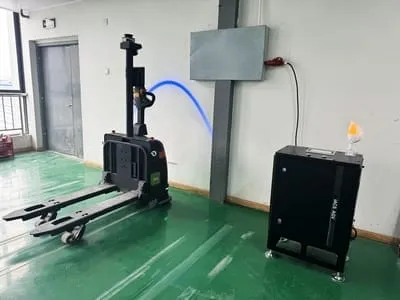

Our FacilitiesAGV Automatic Handling Robot

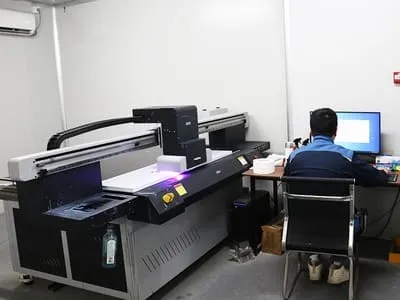

Our FacilitiesUV Printing Room

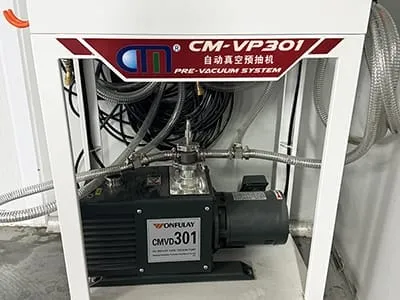

Our FacilitiesVacuum Pre-Extraction Machine

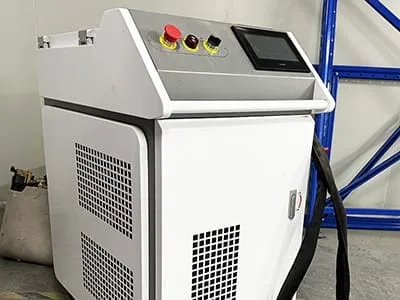

Our FacilitiesIntelligent UHF handheld welding machine

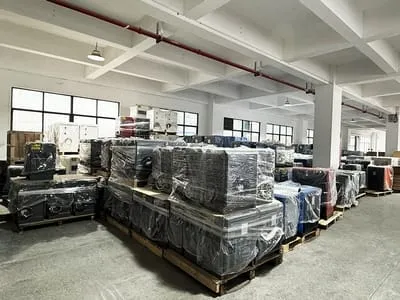

Our FacilitiesStorehouse

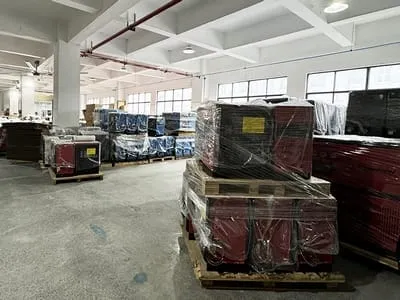

Our FacilitiesPacking and Shipping Area
