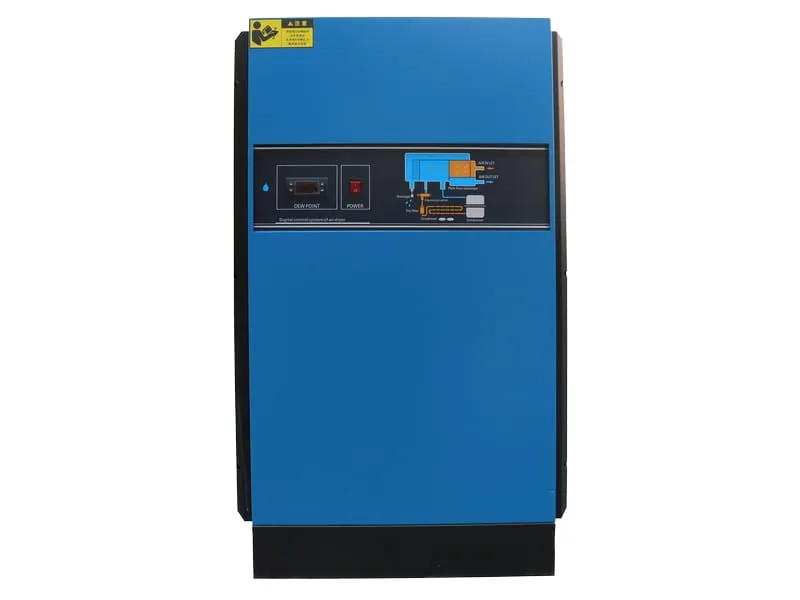

These energy-saving refrigeration dryers are engineered for applications requiring water-cooled systems for enhanced thermal efficiency and performance stability.
It combines advanced plate heat exchanger technology with eco-friendly design to ensure reliable moisture removal from compressed air systems. Ideal for installations where water cooling offers operational advantages, these refrigerated dryers deliver consistent performance with minimal energy consumption.
The air-cooled refrigerated air dryers can be optionally equipped with IoT components, enabling remote monitoring of the dryer via smartphones or other connected display terminals. This allows users to access real-time performance data and manage operations efficiently and conveniently.
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) |
Air pipe connection | Cooling water connection | Evaporator type | Cooling method | Refrigerant | Total weight (kg) |
Dimensions (L×W×H) |
| 6.5 | 220V/50Hz | 1.15 | RC1-1/2' | RC1/2' | Aluminum plate heat exchanger | Water condenser | R410A | 63 | 700×540×950 | |
| 8.5 | 220V/50Hz | 1.4 | RC2' | RC3/4' | Aluminum plate heat exchanger | Water condenser | R410A | 73 | 770×590×990 | |
| 10.5 | 220V/50Hz | 1.75 | RC2' | RC3/4' | Aluminum plate heat exchanger | Water condenser | R410A | 85 | 770×590×990 | |
| 13 | 220V/50Hz | 2.25 | RC2' | RC3/4' | Aluminum plate heat exchanger | Water condenser | R410A | 94 | 800×610×1030 |

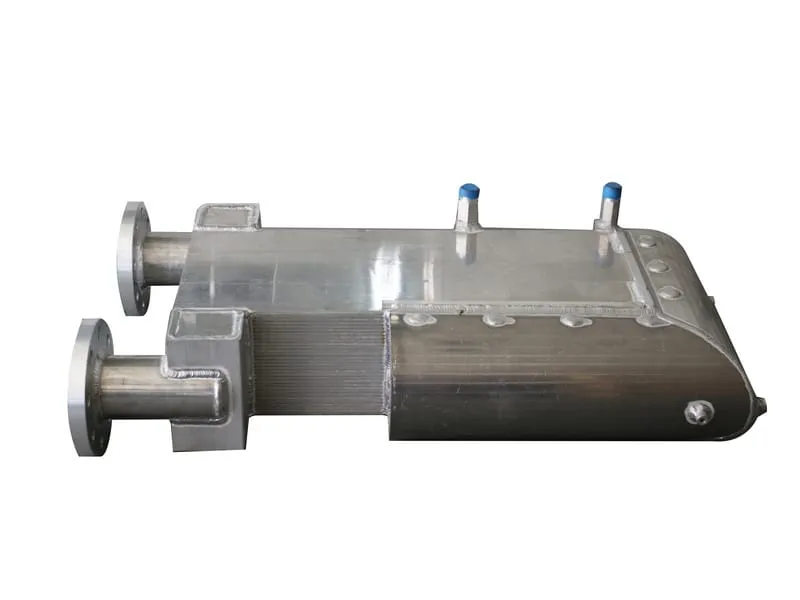

Incorporates an aluminum alloy three-in-one heat exchanger with an enlarged precooler, minimizing refrigeration energy losses and maximizing thermal recovery.
Enhances compressed air discharge temperature, effectively reducing residual moisture content.
Integrated heat exchanger with flow guide fins ensures uniform heat transfer.
Equipped with a built-in air-water separator and stainless steel mesh filter for thorough and reliable moisture separation.

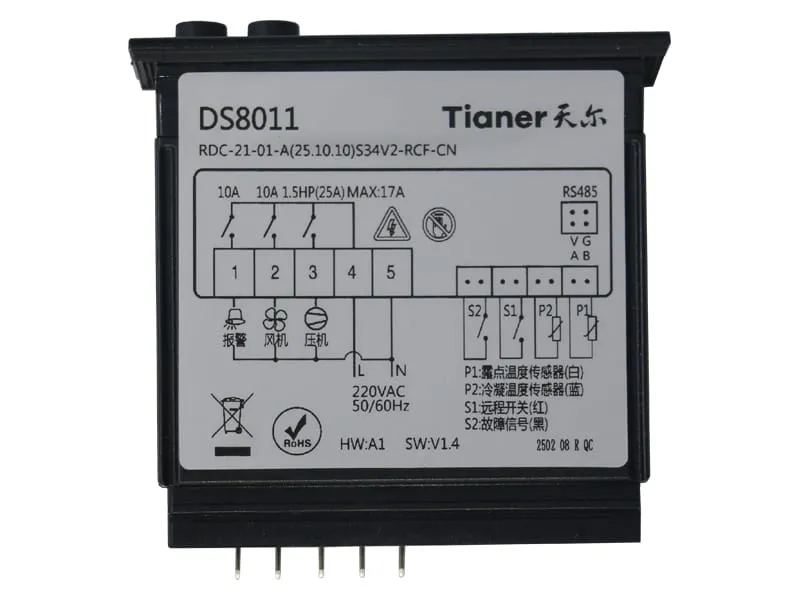

Features multi-point temperature and pressure monitoring with real-time dew point display.
Automatically records cumulative operating hours and includes self-diagnostic functions with alarm codes and protective measures.
Complies with the Montreal Protocol by utilizing R407C refrigerant with zero ozone depletion potential, meeting international environmental standards.
Standardized with a constant-pressure expansion valve for automatic refrigerant regulation across varying operating conditions.
Features dual anti-freeze protection (temperature and pressure) to ensure energy efficiency and extended equipment longevity.
Whether you need local assistance or international coordination, our team is ready to help. We’ll connect you with a trusted Tianer partner to support your compressed air treatment system needs- quickly, reliably, and personally.
