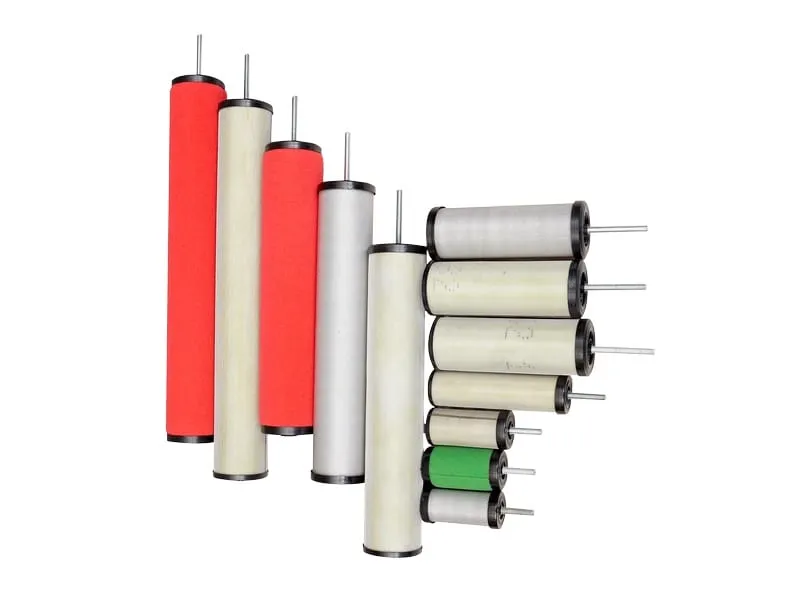

The precision compressed air filters offer reliable moisture and contaminant removal for compressed air systems with flow capacities from 1.2 to 88 m³/min. Through interception, inertia, diffusion, and gravity separation, these filters effectively eliminate moisture, particulates, and oil mist, ensuring clean, dry compressed air to support optimal system performance.
| Model | Air capacity (Nm³/min) | Connection size | Max. working pressure (bar) |
| 1.2 | G1/2'-1' | 10 | |
| 2.4 | G1/2'-1' | 10 | |
| 3.8 | G1'-1-/1'-2' | 10 | |
| 5 | G1'-1-/1'-2' | 10 | |
| 7 | G1-1/2'-2' | 10 | |
| 11 | G1-1/2'-2' | 10 | |
| 13 | G2' | 10 | |
| 17 | G2' | 10 | |
| 22 | G2' or DN65 | 10 | |
| 26 | DN80 | 10 | |
| 35 | DN80 | 10 | |
| 45 | DN100 | 10 | |
| 55 | DN125 | 10 | |
| 66 | DN125 | 10 | |
| 88 | DN125 | 10 |
Positioned after the compressor and aftercooler, or before refrigerated dryers, this filter removes large volumes of liquid and solid particles ≥ 3 μm, achieving a maximum residual oil content of 5 ppm.
Commonly used upstream of A-grade filters or downstream of desiccant dryers, as well as for tools, machinery, motors, and cylinders. Capable of removing liquid and solid particles ≥ 1 μm, with residual oil content as low as 0.5 ppm.
Installed upstream of desiccant dryers or downstream of refrigerated dryers, this filter captures liquid and solid particles ≥ 0.01 μm, reducing residual oil content to just 0.01 ppm. Important: A T-grade filter must be installed upstream for proper protection.
