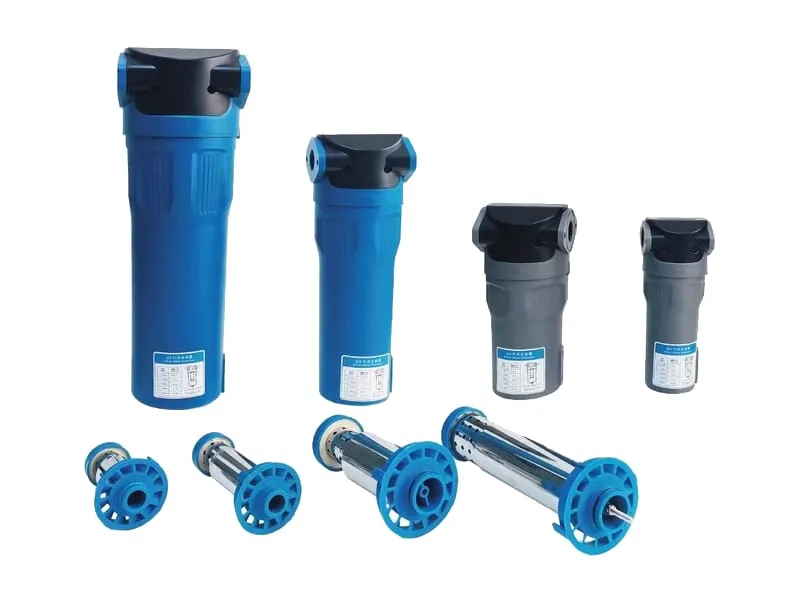

The flanged compressed air filters and elements provide high-efficiency filtration for flow rates from 23 to 320 m³/min. Engineered for high contaminant-holding capacity, strong corrosion resistance, excellent temperature tolerance, and long service life, these filters ensure reliable removal of impurities from compressed air systems.

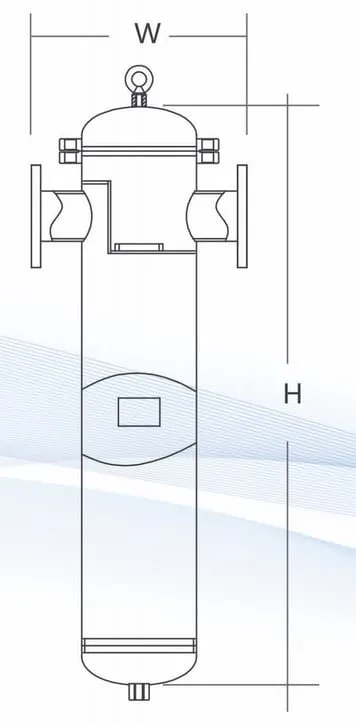

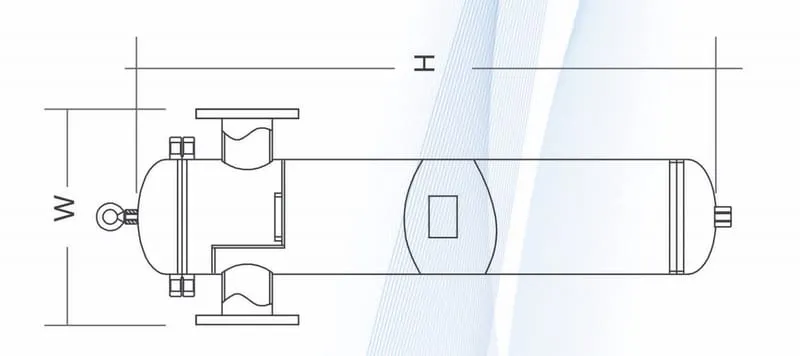

The flanged filter adopts a multi-layer construction, combining borosilicate, glass fiber, activated carbon fiber, non-woven fabric, and stainless steel mesh. This advanced multi-stage filtration guarantees the delivery of oil-free, contaminant-free compressed air, supporting superior air quality across industrial applications that demand large flow capacities with consistent performance.

"*" stands for filtration grade

Grade C filtration: solid 3μm, oil content 3ppm

Grade T filtration: solid 1μm, oil content 1ppm

Grade A filtration: solid 0.01μm, oil content 0.01ppm

Grade X filtration: solid 0.01μm, oil content 0.003ppm

Grade H (activated carbon) filtration: solid 0.01μm, oil content 0.001ppm

Grade F high efficiency dust removal: 0.1μm

Grade FF super high efficiency dust removal: 0.01μm
